New member, Figured i'd share my project with you all.

had a plan, and of course nothing ever goes to plan.

It all started with an Engine. Bought an LQ4 from a 2005 GM Truck. Plan was to freshen up the engine a bit with a couple upgrades, then once done find something to slap it in.

Project Big Stick Wagon AB0Idr_98Coay3bdnRd8oPi73r177rwYwXqMNZM-VadV0cRaPpmttfLBxuZlYzX7KG0h9UbWDulwitiRMQyBJuHpSvXayBEaOEemj_Z9LFs_6KtQX1qvOf5fhqUI7G1U7v337W8JeOYO1NimwX4rF2IQmBBBayTrOIQpmDEla-8MF6EXRDFkiILJ8QUHpL_0PdVbGsQTG0IVqIfqWYxyAOrGEMGryArdJODbCdJvV32u-w_EINX3-zbwDqfA8w6NE2DGzstzB95ZW9huFu3Vv-RLh4_a2mbue_us6jSCodwX1IT1-pwa5QPswhdxnSixMxk6UTBzA5iLkq1wRjE04npEHNHvCDqRkdA67cswQxHF_Uy6BDJLNOhTfdylFwHPvdwAVvgPlv7SGjdZArjmGxe5d4DcKzUy_tyAXTFFKIj69HFg68wR9ZJbc6NleSvtsl02thIkoJLdFB5Le5rPpNS25ZJdFYiIbrnFIvnONm4_xb83nax7g3XMWcbK88ttjaV-wAc06FuTlAwMgbngu6XkWlaVkRA41Zj9sFbVzwiWxgZAVwOccVjQcQH3iRm8K0vK-xtJVh6a4Ahlo8MirHteddVaZKc4dqVjdhdb5y3vp39FQIy5nrrNac6JIegcIAWKUnm-FA6d5Lw0cUiUtAE52L7GcrI9sor9yN7kQFDwpD4X494UP3M-HDtOQrrji4ianjbwN-06KwqRaDykyF1C=w528-h937-no

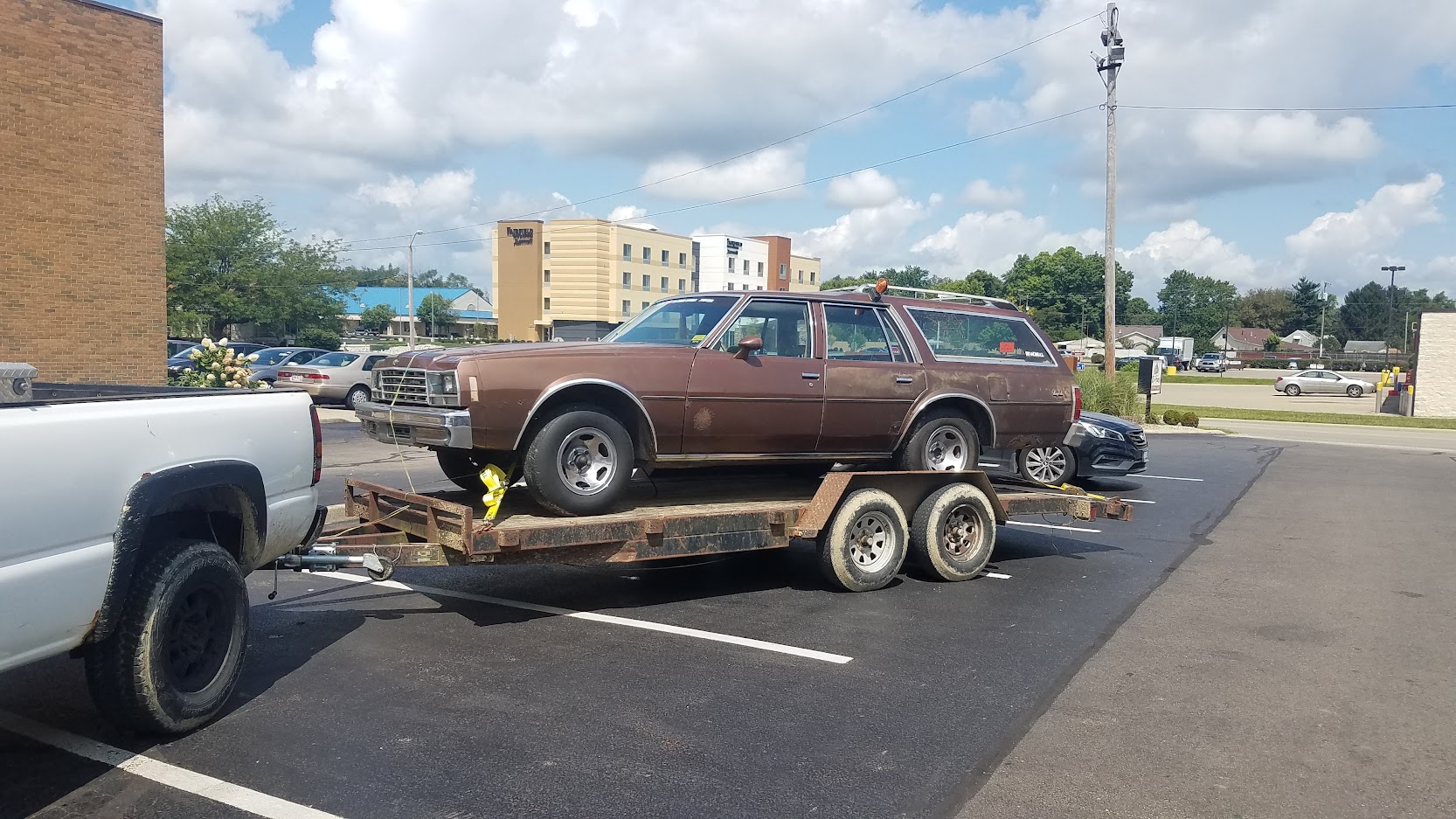

well, Before i even had a chance to tear into the engine, i got sent a link to a car. I knew i wanted a wagon but just thought i'd buy one later. Bought the engine in June 2018, Figuring i would not need a car for almost a year. Then i came across this. Not in mint shape, but it was pretty solid still and i got it for only $500
Project Big Stick Wagon GJNVGRXHw7DogOxK_GPGGoUL4v7c4lIW-6ZZfatDJEUUFx7RG4SYkI_29nlrc0zP9asUdzSqyfIzMeM9Nc_TjoLmkUcDJ2peE-wJmKV1bz994lbtQDZquxtN9MmcXyvr4w5l-EHoSKWENT1pEaicw3TqDCK3f4QSGcRFVY-yBdtgLnnhaXdztRk97A5UntNvWP5P2_-KJOErI1DmtEAMza3UpUISKNm7XIsiuksf58IRQ7FItdAxlQapzcV68OYGvDc6S7n0WkY34jir4j3E2ylAVbY_n4Jn1neG9FLxrt3kcDQ4DeAilknoxBBr9dCBqKg1Fr93uUbUksEpf9W9Dd7EJA7jRIt5pcWh57VKxnM-WkdWvjXe08GkKn59j_WgwtXfoFLzqLJmkmKvXjbLX11V0Frg9bOByzctwVTeWOKHh38odNh-8iRvB9o-mdI6i_2YQfpYnOu1LGeycig8B0JWgCqkFCPCs9H8XaV_o-irk3Ot4pmoqgmuoizcNdPnwOja_WBXLpd32hB7GvuIK2-FC9lP3qwZezW05sOQ_RkmS56U8_HY4D6GIOWAdtbaSW31gsLhTUszrkG4WK1Ebh3anfRuzkPrp0PXmgdNUsMswVg0BPbuWNe2cYBDRONQ0F6uqg0VM6hN0NRonU7qqXvlGeG85KzXuEAaRLpoYzz2kfUxBvsrAwPznNh7G3QfxhLwzC0MJUbwU3by4RfquMU_=w1666-h937-no
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu Feb 14, 2019 6:52 am

Both sat for a minute while i liquidated another project i had lost interest in.  Selling off one allowed me the space and funds for the wagon.

Around November i finally got to work.  Engine teardown time!!   Pretty clean on the inside for a 150k truck engine
Project Big Stick Wagon DTPSIO9MlWvV4dg86B02kzunW42ADu4DNKD-c6QvbI1JLBUmhFyTpNDzSMSRUGOEYjYnSYJ8jqF8FtRAdWx5jXSK6hLGs4E8cl6QtrlleX-PslhUVbqR3VWRL9h28p7_nfsizt_ip2g4EYU8bQmWwFtAkjPCimt_sRT6t7TNzCdi5LcktF7LKscjXcwHXefWWfeexxjNEC1sSo0xZkljqxKkvua3KAL1OAW2tiXRv9L2J3kvC5y3OJblbx1DPAwGV-Pgk2VsDb9XaG5mlO00CrrH_1vd-IxwvIU1fUqozLI77sax3ZL_OtHQknxumdoltxdDRnalfw_Z_6MpvyijPjlHFGsWW60kFJS1SjrK8_Le3LqFaHDjUTE03B0kkCpfAZQfDWk8Lo_pZcbEUtRHn4kpWb9dXJfXMI--3eAKiCsrp_T6sKu_sokyOLyh5HJH5IM4nTvIOHP_4pyEm8MPD43NB4VXVtBDWK9Y096SBblX4F9GWbyS3JINGLszI-X_vWAcY2VTzZpdk3Y7Hy-Hhnq1WjanpXw8xZV6ppx-boA-Hhfzt1jzkAPQY5U_02TKFNrBEJ4kw7Yb6ym8OUepnGmZLRiuwt35Wkjf5PpRtjEKmy5iYBtOXi5dwWzb5WzmCkNH2AQ-eKMu0M9JraoVuxZX0utpPKyrXXGcV7HiOqFMskeJZrHopXwbEuoWVEf38yjAu-gkEcPtyPWnpKoDk9VJ=w528-h937-no

Traded my stock 317 casting heads for some 862's.  They have a smaller chamber (61.5 vs 71cc) to bump up compression.  they however were not nearly as clean as what i had removed.
Project Big Stick Wagon 91JwhD3p40mnNnPOLiXu0AnJ1EmEcEw-l9NpWD_7_FHl7W1Qq5dcAY8xwk_uvTxURs3dRX3Swmhf_tJBOKPL6RhXFQXgd0wcpyELbj07yO_4PwaMWhMb0amYEUokrWxPDWpgl4HSnfEUJS1yFoqA_NZu06rrJmujWxfn5zxlxGN6DMeVyTcOy5_DJ0CYO1dGvyximAV6JgEbJnR-8ntpTruE_qwhYLH8H-j2I2C5bN2hINO3NpkH1q9rBG1snzBBLfXvYVe-calh_LwFTkbxiHQFz7Z8Zh948U9t6O8AiQhuDP_uwNSlooe9q_uvE87W6ms5s98sn0vsHfAe2-SSliNdpoMD2xcOAfHY_h7L3o2HvOKPmZPWR8jCachLvnEscw4ZXkP6MvhtAeKaJJjGb_mrt3iPZnO70qhAE9kRlVG-g3A3nUpS1r20M-01wQxEvQpyr9LjL5ftBEUZMvoo5hYO3UZgKAkSTltTJeaShZCWmD8Ous9OCnnDBHwg5UBqVsHwmzsdn1JtWxTvFZMPbO12vU6dAtqyazAiL21o6RNbVaP2woUNkeP9iLjFSuwtUAlqHgzjD7o73Bd6rs4kd0gQYGorSLG-Ud5TVGDk09BivNsTUv4HSK88XjCctVKlXMXxApNdJSLlYLklVHPtB_IEctV7_etjGKj_XdWLkg55jJBBGKasgRrCKq0WUnLD_wkMgvtmuDs0_2Sv2WZJfTjD=w528-h937-no



Then, reassembly!   Internals all are untouched,  but got a fresh new custom spec'd cam and cleaned up a bit.
Project Big Stick Wagon ONDqhxxCTuEQdCTZe8yFQ5SKxqBw_ri8yqZmltY_ewjErnpeBANLr2t4OcQOGF2-lq5Mbr7bVH0aXPBc5RA13mYXLPQoAj0hHBM1QzTq_PhAsFJTYpC7K6oCbvkqT-1Ry_iZtRSeRisvAATFalI4XvSbDWCsz2k2-ekv7DJkfgT6v8ECMpeM__s5XhmAKLJunC55U33BX8H-g6JQao9DJe-hvF55kYd-W_ethiGmq7r3CDgXTmhzz-xfn4cKAHiZTfuYtM-ATNsJcVt8jo0seh5VQ7OGU78xlFHylFHOmXaR8Q3q07kHMY4jXVajGMZTnsP6eP2vmPoOrywS35ocpMZI6AViymzUiCZ5fLzQ9XoOvYW0nGB7dXxkzv3as3hNEQKnrA5ljqZVoMah4_cMjk4i9EGg1Q1ySx2Nh9e47t6Lh4GvaygdqYDvTWB_rY0YUJ2XtqQv7h_u_Lc7m_71fgl4Du0B9NdsZnQvvs6vSI7SswKex0EwLiHu-4WcswH31Wizh5Fqghh2l__WAMeUIoztHolxbAtaE4cNOXETdMjQpuxkEqTUTDwWoTFt45FeIrF5f2TG3LeLZMpZPnFkDwGWGcONO9TrFvw0UKJEVM69MirOdVRljxbt0H3JdMQEPorovKYQwbbL6lHfNYrTa3YaZsZ2mLm2O-0qBk93RMJ2tvV7wiBlMHwooV-5MCXcXINe59cuYwP-Lhzd_knVARZ3=w528-h937-no


Would post a run vid of the first fire up on a buddies run stand......but no links for 7 days.
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu Feb 14, 2019 6:55 am

Now, Finally start to work on it in the car. Then, something else that i was not looking for came up.
Project Big Stick Wagon 6_QzCu_Gz3NBT6MdP7J8VN2ZeAJBppqVc5jWksxyjHSK3ByTDpFYJ28k1t010VB3DuwMnecHaLo8SJ5rZGmKh6qPydfI74L4aGJOlZyy_gz8upU3vsbD07pQE_iQ0A355PzGOufM3S6e3FqeuEgglYt_YLbFxPR3bwTvotxDBWz5HfZJ6HO82_VvUf1W04kIKlp0ovQoeBx6m41LKgmAO2tN3jU2QHTuq_HEvUnK4dkLr8St7O7HY3UcugDsOJDPRG-4N8TjSxZx7ZR8_hlXiFClBMHhzndmorOWkEIO50hdQOMPHYuEJzFcgAxd-5zZBVDBzKBMmXr_g5qK2oNhz0gf0rYUQCQYNwPmWETEG4zzKJUk8Gt5rCt8gZljp4sW0pbYNhZVI-pprOb0uOB0RkZKyGG23KkIED7qS_mZ2IqTv-RacJ_OSLz9DHGcrMQsBVgqhyMk1tkd_3NgX8IVHzU5Q-l79ETb5ollRH-S7NC4mj3EJL888ujQvezPs2XwI2abW9m9Y9STEr81YoDf634Z_fTVfw1CP3dyCo7BX9lEG2ZvqEK-UzwhwKtVL5U84eoj1DTQQzuDV5sxYdp2dMRgP0mQddiHZPlnATa3QUwNU-O_UPtTb8L-3LYZroNT18uD4NY4SKFBU1E3CPYbzDXkZurGVPrvkoT33WlL9zpoL0T0MPkhzNk4Li_ypBcf2gkb5iV1LEKycrWY3oLc2J2a=w1666-h937-no

Picked up a T56 from a 2000 camaro for the swap. Was just gonna go auto, but this was a deal too good to pass on. so now, bunches more work for me!

Project Big Stick Wagon PWDZZ4oeoCOx3dNfToM1Dbekks95MVweJasUIrULbOq2w48iNjI9optwP87x0gv_UuwWLkwcA213C5WRaRSbkdgJSCrzQdkG8Z8i-zw3bw0vM4BFs2n25BkacY_tjRZE4X5TsSpbyvN-ILtFV-aYhDvnaCDUo55tkbCzAdqqwCQAVKMl4pjwXLXPrsJAj6-86yNwvjqmYBEdFn5ZJYdZO89LZ4E9EwGlhPapnyHLV6WHGxO92UD_dZZ-a3VlpCd59axB_zxNDU6HssZdRk3_ZFlh6BiH4bRCXtdsQZVyp8-Rapt2nRv94ZbsmGFsbqNc-iEVIJEiPe82p7FuZsO-ihz71ElabzaE7R40MLW28lH6GqQJK5cPamInNUkqiukik2YrVv8jAOuuECBqXyIiSSXtiPCUoAUHFFwYNS3ZXcTp4buJcjo2-SO6jbFiNiYma5Bfz6nFxYXbTgKOzNtTnozTQpSEflsoMn8Ib4tEX52m0vHHVvl664VuqCJIcv3Y0bkRxm3Iw05GsKQbnTjDFibj7PbbIFG4yigfZ9qDwBcxF-uoyK2evKLMRGdqmLoNNZyn-ItGAcZdvusFPgtrfftINAEffHCz6at0HMnDMG7LhD4TEjHw5FGJEZBfQ5r-PnihFwQxNUDfkYOGm0RTvKUOsY0RJ8rDMLfxqcy_IG011dKJ-h4tkdng7L2CbAhqlDapUe0Ygk-VclkgUdYQVeJ7=w1666-h937-no

Had to take off the front bumper and header panel to get enough reach with the hoist to put engine and trans in the car together for test fitment.
Project Big Stick Wagon Tnw25aHHeVHWr9dOx3TpSmuIt9gA-3g18sCvA2Mu60FfyNSUxjUh3PIySj1m3Mw5GaUgQ3AJhowIx3NEQ0F36mseBKk8dWU2LnKy8haWWdsP2bm1dM7BdnxljX_wc_c4vPysJTS-1xsvvo1v0eHC_JpRUeHKuVcawySZNdyrnsvOuF77yphQvYnDW4eFKtwEFtFvHwoFR_uCF3wnaX_czFNqDHquHv5JIqYFqParwe_-xOfD3zisC6z7JKLmWESLmMfMQqd7f0XpiE2fG2JmIj0OdB6oK-2JpOAp_imP6FQE82HXvhGAxYt2TecqGlIN2nt5OHEka4PCwl9RDQAea_vSwpsDUXVvf0jHuLIO7ID0CM5z6zc58rhk400cWpYsZzMisU2FcpHyNj9z7HxkLcLn1RFup_d4-dRTB3EGJ_drPWtO9eDc6XgxTvyIopLUS1FEi1yWOf_-JG_0uCA93213_c_F742h5bbbIBq7mLYHcN_00lWPgJVkYuRo64fW2306wpMiKBWapQxJ4cSzuTFS01eqOCv1K0YLgg93rFbdbEn96FKSbeUtJq7ARfQwX4d8a2Nvx3BnYsVMoYCT2AB4D0OIH6zAzj3aUrib7hFMiSjnNRadJqaEN7ORr6bhKbhKn8QkCRAV9I0DS1vBOJzsZMAlvvUYG7LqG6djOjdBxgme418QL0o6ZrIkrLp_UmRFdCg4qannDMYugn8dmktF=w528-h937-no
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu Feb 14, 2019 7:01 am

Engine Mounts were a bit of a pain. I was unaware of the KDS mounts a the time, So i ended up making my own frame side mounts and used generic engine side swap plates and solid mounts
Project Big Stick Wagon LVcCqM2rjw7lGDsAs1pdyBaOt2CQOvZskAmqx3Hg420g-2Uik9FNmlPAQ9Z6oUTfKzjjhjsSp32kRVyOtV9xwB5cmTgVLyx4HGSQYVSqZmxH6EjpcBGhxzS2OBf1zxqiR3g49mUgTV9lHg3dkPobEAT6GkDLmnLfDld681ABL5TAmjfE47a1_ZELdVItvqrytKf-YbJX1_8SL_YYh9NI4g7Rxcj0i-cBxLxLoY8OB5JepEr_VFPdTGOrGZVV-L0OzWKpQRpIhi-Tf78yVbqiezOf-5jo-Tm4a7to8N3twJO44tHKYJp3BvGQ1_EvNOJfYKqpmrqzfnWKBiw9Wm1ImHqsfJFBSe5zoavIkIYzX--ImMEzkKS9qWo7kl4pM61uzCaIY4RAsxVQ0qhOovAuGQtlRRmayZLFfUpAuboSuhb4CaygUtSQtgJj3gzUm0CHNUr60vx-rvZKqi-IA9cxh-fdA10gw67CijzLm40S3rgA2sPWKSGZ_ABMykWRPb3DADGRqfNt-BcK6WfoX4B_R2ICn5c8WPoO1dcO7ZyyFFuKcHx8LS0mRjK9qkArau1MIk11EwHHiIj9e6Iodt70TWkSpSDWtI56r5WkIvN_O3A8sZWPxhC_QjzuxPNLoksWEtgpbGFwGApBL4JPhSHNHtTZnxdkTrbduSTZqa3j5-trdpMD41wkMsYGAkTN9D3vbajz_qU9aWHjbwExAEEJP7OF=w528-h937-no
Project Big Stick Wagon JhiSUt0LdHFtNSVNR4sMlkM202aFi1boTohmJIKFFC4e6j5_cJMuTY6ZWGQESUo0UraXTLLoeJzaPreNVJo1enwwy5_WkhRCQqBXRoauBHc6wLRAE3By-jh93PoscUZQRCjtYZRtS8GOOjFRZI44ivbmC3KN8dTpUnXIBZyTZ4ox3rL2lTAsVnigbfOkmeP0DSoaALTA25vnWO2J9MkLFEHfpA85Ol6ww_-Mkq-PuyyymPb0lGKL3yIUxqID5kpYM-axtjt5ghcunDOjqbwYhU3PZywVXUiTDBbSkpcnkI2txKlrWLhXm01OYeIwRsqmA1Prw3dPKnN3leRMmIxNv9xo98yPP2ppjlaSzR7k1O5a4jqtNegfn0UKmKk08-H4ZjDMqlPk4aJUAQv_U_k36Cdlz9jGQjFgWeswWf34TFuEhJyp_V0Mz1uYFbofN58sy0kwDxZcgaiJJKVSCde6R8FTN7TxxOyKmxmLwpcstGocYyt8EqqGJWlsO8SmDq3YSukjbn_D7MyrudplS_UCkmX1GpcoDR5XrO6dAoUi9t580ts-IfMGujYH7nc_YGWjXt2kr75GCuYOzIghT6JvosbLswzOw7robeMI4wrNDc0zyBi7dPwn8DVp8Ytcly-UkTkTjM7ovvUoNs8W-ydqztxE1MkEdWl_dbrPGvOMH8t0GFiOLrf1CogR49lVujYA_MGAn5LqxfSm52_gG2N6h1e7=w528-h937-no

Where it will reside
Project Big Stick Wagon UQVrvtvLrvGqnBRV6mWWoZQjofAGOtR16PUysdfGJqicnfuMYF25KJXvkBAD7hd0L2FXgqGVYhrbVQWODhY5kVDUhf-14COGnJ4vM9Y3uHe27LGC0uaNtTf3NirhEgBIYY3kGepOfTN4lZqy-4jiHw2ocnvK10yAw3R9vPCBxMCCoTiaemRaQZjbBZvWrYKyg4t_T3jnV7rP3pmlREEDqeZnSbCHnETimmcOszipMi916jmu9xazaszYTJA3v-uIkT1AfmXybM6vWw_63b7ZS-HtwVHj06_YeHvRpsQW-AkiNJwS4yP1XCDNB9fa-4eHZ0oraRMlA4pNh6YCgrWDl7rpk-1AORzGkLFG5072-6-OFOIOEa_lS5zCoFcJrLbLn3Gt-dVVfwyvV6SX4doIyLuBzp-XyxL-dCOnRXASG1BryUbu6D5OOzrvfBxtl0S9cYSDHOsNCLUmrxZCjdWMSdgfLnDzm6ify3VIYJRkqukB2IEBcDj6KyvGILmEu8b0c8VJ7PfMHdXxeBjulGhKJH4AmJ81jIJ82E_RxX8CpBKQiqUvKbgsy2lB7Y-tYpQ4tZOpSpD0yc6BaBB0Rwk6CQp7G0Dw4AvAC4uZfgAvIHETkNkjFlVEHdYV959nlEC-osgiF6rcrkpuWaGR4RMfsnIsLBWbceMb0tQwtJE1LkS5c6UlQXJuanR9Ii17BsTKjvm2DRBVahcB7bzW7JhlDeqE=w528-h937-no
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu Feb 14, 2019 7:05 am

Trans was hitting the tunnel so i knew i had to enlarge it a bit, and floorboards were rusty and in need of replacement as well. Two birds/One stone scenario.....and a plasma cutter
Project Big Stick Wagon AhaJWpd3WwY0Rv6tgpvwHeDVotaxL-VvsIEhDUrZJ1DM_4diquffAo9JhIC7clOYDWtqe7UfH1ZwDo1jJvmUyGLDmRBuBwCjVeOoL528f1Tun-PaaKeAmcsvZ5CV5tz4yDQ2GtS2qVaD8dJpIngMwpOstcK-v81jpKVcstoGhLTOsn0UeWJMgDtNj99CnTJ4PE8Ur6_BeisjVCyBd2QOPNkC7AAyUQ4XeTbNokFgiwTeOVPZ6hj4RNHsXTq5kMpDeMWTCKX-hgyrdFbi-BqB2xzohznpHvN0CTP8gbmufIaGlIbILQFNRwei2E2n0jwd5JxqsR_Hp9UnrI9oAkOFypXJ8a0EGBZAKSwIaY8KXSStSdP8XWnV0EleWcLhePOZW529TvSIO25aZUJGXkNQCOBH_CVRUAw0vMTs61L5TvgsED5Nqcvd0inTzI4tJCfxs5_yrUTpBB0BPM0vqLNlzFFrC8jq6weLrFECERDQVVCQN_xUe7isjY4U4ZjjqWIcxeLQqo44lpUjBEGdhGHJ0wMQAn8q61gmWwydFPAc4DpzOcOKhR4_V3enfUZdeQM3go6Uk4ZDxMmL2jGVPeu9QFSZlZSnr0nHRb_cNoF7W5GzrR4VIJbrBPM2N6rupqMy542htHTdGU32hHSTdFIkPOY4Sk-U9K81wh5HwEXeswbxUhaLI2nogA51Tu5ZvoWynZT8IrjhG7g0yBd_Ud02DgNb=w528-h937-no
Project Big Stick Wagon B6YMteAtpriG630JhP8tLLE8lGvh9zy2LQXPAtkNi1WHoLBnkB60-rG2IN2iYRTij8R8k_LTbV60jMPeh-c-E6ThKfBmTPHETNYR3DigwY5ApBQII0j35PmXCON-mrbxW3rl0a5jTd4KUi-nL53rG4G1AkgMIgXHMZZPA_rJynZkpRICy4nIA-b3HLP5MsTyS6j9TwMwB3ES0UhdNFbV7aIwjAEW9ZwgTfuMuIYI_9qhkTbE9FG9lL3kl_LNpGPyjc1cPbCIuj-A1p-iJxSfrpWLySRfoxT4zEiYTg4RbezUD8FPcRX5eTr8AY8aJYTuJLYU0uguqtn4jYsknLP7sIxEbaiHrNlaY_byn0hcP5xH5Xl7Q-el9L_9z4jTve1hl-5lOF4Ic44j85-G6VDbTvRBt3ID8iumitvFUeyPs-W9uFXl59VJixShCJYF6JsFdpSt84W4hDTyejbmbzvA598lzs_8RqVuN_Px34awZNDQk0eRIzH3tcX8yHDcOHgKW3Xfdzsotyb9aTtgmzQZKQY5S0tt4XCQe5Cj-4WZAMZ0ayNHQNDlg2-Lk7BgiVc5bjfT6gQ4n8YDn5FA8nmMlXwYpzLX79OLAhJCFfMESQABNYHkxjen4iV9PsWSpCiY8oq3lbeZo9i14c6Gq5sw4ev5hLuzGKue9dzjPdvXm0sRx_pEUw4E14z7bwYkuD0dqrpixl7jPUta-TzfpbuKFgHv=w528-h937-no

have my trans X-member all measured up and figured out, and the win of the night goes to the driveshaft, as it is a perfect fit and won't need to be cut down or lengthened.
Project Big Stick Wagon 0Lim4-DF5H6Iz1Rvv14MV4-edhVjNAGlvfVtY-PlunlcqcSy_uwweRoXvgg-4X6JJ8DZvQ4PpG38UOIBJyShHDM4M7XKxglAypz__jfHLV5GHliRr2bZM19SJ9Wd38pTKTmb1DlcFXvfOATQiAYAvMlw8w7pFkJL_HGJpNSa6prXDcYOqDGy15m5iDsTs2ArQHQvDZfGrrZwCfXWK86pR_f86_QqwCKd-UEN2IzkK-HmIqgiCtZgAGwVI8IAV0H9jqKrmq7Z3Taf-JBI5lRDgh4-u8m1vecAJHJ88PLmQW_HkFLPHAET8XpRESvnqkvJ4KO1JU5c8A08AYvF0OMXumOdNpVJA4O9l6kYyiCIOLXC8YzWDdM6Alkc88K6yw4_RdmtVz7QhwrIlqy05GokvOsc4noaBn77nB1iMvX2knfpr9vY1ANvqKVFaysR2gt4A9_OQAB1j50Pd7oa9pAqzK_tvQEVvM_aJxowZ2-bhcWrwJOosxTNcuNHVsGoXM9UD4710APw5xiW0ps0cJVeNayvmSBzv7vkN_CK0p5yh4lB1jU5Lcv0hVqS6vmmj2IheIjV_-KTaoBHr0iQo6nB-c9HvmFv_azKRpMpq-MkzikNwRY5r6V6Pn79yPPrUYrMSI1v48BKKBJGMsC7hkHEsGYLg6nEFbbw3TRC05kSt6-Zaxx9tLEfvqscdmDacSF79Pngpz83kFZs-Gs-wmvnCj3n=w528-h937-no


This is up to date as of right now, as i just cut out the floorboards last night. Hoping to have the car running by late april, and fully on the road by June.
Back to top Go down
RedandBlack

RedandBlack

Posts : 518
Join date : 2016-01-19

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeFri Feb 15, 2019 1:18 pm

Clear Image Automotive sells a crossmember too - but obviously you're a super DIYer. Nice work.


That's the best part about the T56. Same length as a 700R4. No need for a new driveshaft.


What do you plan on running for rear gears? Might want to invest in a better shaft after that bit.
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeFri Feb 15, 2019 1:32 pm

RedandBlack wrote:
Clear Image Automotive sells a crossmember too - but obviously you're a super DIYer. Nice work.


That's the best part about the T56. Same length as a 700R4. No need for a new driveshaft.


What do you plan on running for rear gears? Might want to invest in a better shaft after that bit.

Yeah, "super DIYer" is pretty accurate. I Build everything i can. I already own my time, Money can be a bit harder to come by at times so if i can build it, i usually do.

Trying to figure out Tires and wheels, so i know why my tire height will be. Looking like either 3.73 or maybe 3.90 gears, just in the stock 10 bolt for now, Might upgrade to a different rear later but i think the 8.5 should handle the power decently well, especially considering its not a drag car.

As for a driveshaft, might build one of those as well if the stocker turns out it does not like the power. I was kinda hoping i needed to modify my stock shaft, as it usually makes for a decent tech write up and most people don't realize how simple it is to do driveshafts themselves even without big expensive tools like a Lathe.

It actually looks like the PO of the wagon modified the shaft as it does not look like a factory weld at the slip yoke end.
Back to top Go down
RedandBlack

RedandBlack

Posts : 518
Join date : 2016-01-19

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeFri Feb 15, 2019 1:42 pm

You'll probably want more gear. Most people do at least 4.10s with T56s.

For reference, my 4.56s and a 28" tire turns the same RPM in 6th as a 700R4 with 3.73s.

Really? I had two shafts built for mine. Wish I knew how to do that lol Spent a LOT of money on that annoying part of the swap.....
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeFri Feb 15, 2019 2:03 pm

I was doing the math with a bit shorter tire, 26" tire i think which is why i was looking at the bit taller gear.

3.73 would put me around 1800 cruising at 75 MPH on the highway.

this is the main reason want to go ahead and nail my tire/wheel combo early in the build so i don't have to end up doing the rear gears twice.

also...what clutch are you running? i already bought an LS7 clutch, but just curios as to what you have with your setup.

Thanks.
Back to top Go down
RedandBlack

RedandBlack

Posts : 518
Join date : 2016-01-19

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeFri Feb 15, 2019 2:04 pm

Spec stage 1. Supposedly good to 600 ft/lbs. I was going to do an LS7 cluctch too but got this used from a friend for cheap who was parting out his build to go TT.
Back to top Go down
Andebe

Andebe

Posts : 3210
Join date : 2013-02-20
Age : 50
Location : Marion,NC

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeTue Feb 19, 2019 5:54 pm

Great new thread! cheers
Back to top Go down
JeffY

JeffY

Posts : 93
Join date : 2018-10-04
Age : 38
Location : Columbia MO

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeWed Feb 20, 2019 4:12 pm

Damn bro! you are not playing around!
Back to top Go down
Sprocket

Sprocket

Posts : 5581
Join date : 2008-11-04
Location : Palm Beach County

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeWed Feb 20, 2019 5:02 pm

I'll throw in my 2cents. Welcome BTW. I have a T56 behind a stock LT1 and the 4.10s are nice
Cruising at 70-80 I think it's only 3-400 hundred higher then the Auto with a 2.93 rear. Before I got a tach installed some stupid girl totaled the car so I can't give exact numbers.

Tim Swink on here had a spreadsheet for gear ratios and RPM at speeds....I'm sure he'd share if you ask him nicely...Smile
Back to top Go down
jayoldschool

jayoldschool

Posts : 2544
Join date : 2009-06-14

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeWed Feb 20, 2019 5:43 pm

4.10s. I ran the shorter tire (295 35 18) for 15 years with the 4.10s. Don't do 3.anything. 4.10 or 4.56.
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeWed Feb 20, 2019 7:43 pm

JeffY wrote:
Damn bro! you are not playing around!

Go big or go home. Figured do its always cheaper to do it right once, than it is do it twice any time.

Sprocket wrote:
I'll throw in my 2cents.   Welcome BTW.   I have a T56 behind a stock LT1 and the 4.10s are nice
Cruising at 70-80 I think it's only 3-400 hundred higher then the Auto with a 2.93 rear.  Before I got a tach installed some stupid girl totaled the car so I can't give exact numbers.

Tim Swink on here had a spreadsheet for gear ratios and RPM at speeds....I'm sure he'd share if you ask him nicely...Smile

jayoldschool wrote:
4.10s.  I ran the shorter tire (295 35 18) for 15 years with the 4.10s.  Don't do 3.anything.  4.10 or 4.56.

Well after much research, googling, and deep thought i have come up with running a 255/45-18 tire all around which is right at a 27" tall tire, with plenty of good tire options as it seems to be a popular size. one an 18x9-ish wheel.

and based on my math, a 4.10 puts me right at 1900 at 75MPH. seems like a reasonable enough RPM to me. I figure you guys definitely have more experience with it than myself so i am willing to listen.

will be going with 4.10's it looks like. I think 4.56 is a bit deep for my uses though. Thank you guys for the first hand input
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu Feb 21, 2019 6:46 am

only a bit of work got done last night, mainly due to its time consuming nature. and of course, my "finished" pics did not save on my phone for some odd reason.

Made a new crossmember, Version 1.0, for the trans. I know it is not the final iteration, as it will most likely have to be modified for exhaust clearance, however that is abridge i will cross when i get to it. Should be a pretty simple modification.
Project Big Stick Wagon Ox42_32-IHQYVkF9obxSs2RYTBBNOU-MIJZiqc5QpkJlkYAO4ebNRnBQfazFseBHx5JEUyIr9PuB-3RlTNXvURvBrksTB_ilVYGK0e8taiXEHESqAPb-aRrf2a4ufsul2i66ofLsAiP2DLJd7EfmLt20Wr3ouZObI5NpNSlbZvJlvbHLdrn8jI-Q_wQ4ovAPbpaxWiUYP86hvIves7zZxT9-gxzhEbDRsZEgvZeyOfzjrJCfA0vsBqGAn-IF9_yrcbZaXC_FVYkUIpHDO2NXx4SJyPJFyeIyIWdhhj1mNS94f8gpvuu-YbImxImPpSOqf-5ZFv8USvgXks4K2BSg2oj1UItuLUdUHhgBTzY9cfXqiKrlTQrOxC6XJaN7Twblno52NhREFkLcA38rzQ9d68XrypLgblb_kEGi55P0IERV6Gc9986CiZgGcAvl3vcZxjkdN3wAxWS9-SomNE3tLmSRZIUrbUOHzpdS1vtx7Kl3k9pf6ianzq8abGQf2aSX29RjNJhhnPE4zR9d_hhntTipu1ClmBpbKhjiitbblzwkJQQI3H2jnV9dyxhwYdRIYTbI0Mzd3QoO9xyCOotpb0Lgg5MnRPrKJ_pckm26UwxVJZvUsFyaHdpU02yY8FLIZ78T58Jk3Lc_j5c3epK4jaWerAwam-9LiKjH-aXFAxYWCY4alAoA8g0-7ge6c_DBZTAz_DstBvIFur84oxO9UVXR=w528-h937-no

Before i could install it however, had to repair a bit of frame rot
Project Big Stick Wagon GPIc7IqDesCFH7JbJqb_V1-ezjoIjCraMqi3DJC0ckF6SLLQKOeZFLptC6KGmDPbzojrHQ-kqwIClXtly8ABgOKaMefSUey4V2ijYFM1obfVBlMU5pCg6anQ7YmU_ppcvfznKaE3mMpyUzeC_1vpIeLC9xRkIL-kG2Hz0ZQpp-xr539rc_avlGPU018Lqx0LCkfB_MatUw9MVcXUQfJUif9vJIwpQCaggzwMBNX70ox0jNPxSTgOv27OwiywHD8qv7o_p7lqqRK4Q_A0iQbNUcCFmgs_LD0BEwKsacEtH3qQsG0Z89OloK-VFJVjtf7-KTycodCBs87WIYF2T7yZhEr1oOGJutol6S0l-_ym4KUKdSnyV4SvOFzad0PsOQ0PS9XzJ-nYXkA4v8ORU4jhbM-louRGZdzFFcKeugo_R7WJ6oOWRSune4b2NnfZmckXdoQd71ea9XCuOEKxM_W0KnOTvwPFPHOESRX4-cm36Kk0lqSbkRrkURO7bOzErTsVoaq_MgPzDcSTP2PfMGZe0QgDsqOgIT67P7KMmYftY8XgFO0bd1DP1Y9X50F_NfmeTSWhgAFU2xFoHOiRZeBtbRj9v6Qj9ahp4o2gDQ3oLFt3b9MyfzCt7PQf3oG_cwINAHBUthWIbSrEfR40QZpKKHXIm26iDgcHaQl0TiWU24MZS-gl8rm9dkRCX8Jhn91wJEEesGdqzDAIQghxb00IwaLU=w1666-h937-no

But it was patched easy enough with some scrap material i had laying around. Holes were drilled and X-member was mounted up so the drivetrain is officially installed in the car, on its own weight.
Project Big Stick Wagon 18qBQYAKXYNP41GV5s_MqTQLf8nyPQyhRiMoa1hCxbu8x46fXCv4hSULBNRfF2eGYsGO674OqDUWWJswPmuhpGhQ-kvXYDT_DI4ICkVXZg5x6GG4nuOds7f3XGSO_EPbG19LLs04LdD44cykAQtPK-K-70KJ_kEAdQo-Ud_IlTbLjv1O9A-23iyDMMexsU30niU5OEvrzZjuxLhQ9Iktuw-x3Lbtrzsk2VBASJJLQ0U9d_a7HCGj4SHvosgasthZMGsCnzB28yY0wCq6ScIXAB54QfgYXo7KAVne5fc22RIQ_95MaWipoxV6Tk3nK5tIKB1H4wxE-149yMpfjsom6JYcsbKLaHBTwXIaxdo_Z_v9BfaTw5EwTdevML27KS2r52IWTWRTAz-rXvX2lHal7TXtogo66o73OLNhRaVTzaBK_tikay637QTGHoC2G5HAKqRRJdM7-AHrt3GSW5OutVS_9brzb5uN-ygDSh-DVTvSDD5gcQVS7CDPlvlufX52ZHBLoaOXXFjELWyWO74kfkDYngpYOoEgeWVqWMrsF31xnLMbnvH2uFpU7yXqO6MP5XhrD0Dovms_RmRF5Ef73ZWwMZikrMjmFs9xSHXgd2AGis-Vbq4j61Di8eqNFfT923H2wxWvyoCJrND6JVvaznQynrUiMGkdsc5PwFO-F2L0GrTq3SzoNUeVrmpxZDVw-Sy8k2Eq9_rKaC9HNmofqg-f=w528-h937-no


I do need to make spacers to go inside the frame to keep from crushing it when tightening the bolts for the crossmember, as well as modify it for exhaust when it comes to that point, but for now it is plenty to support the static load of the drivetrain, Dynamic loading is still a ways offs. No finished pics, but the frame was indeed patched and bolts put in the crossmember.

Next step will be trans tunnel and floor boards. Measured up last night so i can get an idea of how much material i will be needing for the repairs. Should be interesting...never done body work to any extent.
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeTue Feb 26, 2019 7:34 pm

grabbed a few pics of the finished frame repair and mounted trans X-member
Project Big Stick Wagon LJO_tE7D6LGP6edx7hYNsnmLX3VKWLBNI_tLd-hBIfpeKCFgUou-eGkTK95YvMngqODA7e6XWmiPoGc228C6mDCR9Lm4RnkI7W5vxjuZeEd6mTe3utPnpUsgUez4tjasZ1krwpzUR-n8QZUe9bEcBxCPEYVJkWhQSXt3Asb0nAqO6BjzqXr44Ibl150AVMHO5f6hJj6SyAIva_0A96eBXTOLwAfvFrqJ_AyaP9JYO8GOwTsEOXwvtZnfXDVCEfjlmCiVRK1-rtTj8Naz5F-6h4IF-E8KFNlCCLCwF4zoy1ILpGkjtX2_trSQcoG28nJL7SQzKsLgNL4bGdU0FFwiU2-q1cRVSqrFWqNRSPUBfcvVcx8DLv-ZzsI4jXH2JIYxlUWQ3S8DFBY3kNoUBln8Jt-vmRwQbMuxEyLFfGNNSEpFeReZqxRgojJGrEWWsXq3pDkHr6wUfkNUCbl2TL4EG8zqSPUsnXKyEVG9Up03hmoJ503NdeuQfVi3QNb7zUMB1tzrd8m5pwG0UByhjEQubVieeNhC0J4cDJm9z6N0qACZ1MHaIQsHVTePAIn_suvEGPPPxZun5mpqnETpCvZ2dPHr1D19C9bIB6SnRrq5xUNaf9y46efytCu8Ziz-5YHqgpGmg-sXQLRxFt4YJ8RK_2-uRYk0Cz3lIFvmdsAiQquf4dKIiukydnTLFtwDlB43wo_8JhpcKlG9CyGbhW4wf2Sc=w496-h279-no

I plan on going with buckets that i pulled from another project, but test fit the stock bench back in with the Stick shift just to see if it would clear. It does..kinda.
Project Big Stick Wagon QC10BvKRclLy1Zj9YGpQo0GD5uI7pmTqqtiCNR904mGzS-7G1FtL2RgIyBgIGnk-aizYs4dnsTsZa7pzeH-TsjT_O30adUiqlu5q63XP1P8fnJPgMnGORsfl_rsZEJQe8G4t6OCsNDJtN7q0JgP8IKQC_wFAncI03lU7pSoqtQRzRzVfJw06MDlYI4VlnPRczzcpL4Ys9gk4ryI0zKmeMh6kmG0SjOmIF1mPpgbXJmc5_s8uVlffU_DIIr1EuPfKkHY5FI6DMvCG5HwRte6Km11CLBklFhDaS2Zk3a-aLrp3LFksQx8Bs_w21aYCr2nwawzfcv8U87yJx5s4814LOB8zvVGcq6EGz7_SrKzFNfPw04wvKyaQfEpe6fSSnybsMutj--UidBmm-qJtI3yu6ZPmnq58dm-IRW-ZEdB0ME0ZETU5zX_JsUt_qkDHIKiDcFWRsZHk3O5U1nj2q6dat1-yZF1vkcNerlyiZGLGLCFeilbilrqNq0CaJQDZ48AXW48wk5OY3XTyEbDWwYhzvxmwMDWlbtVTNvEgcDjMe2AOgeFH49xaQD-oN-hirMuSJr9XZn-WzP7VeL1gfsFoNue_BnCbt9bRR6zL3paaC9O6ZkhYxQjpYUqJTXjbVkJJjfw_QUIfxiu_6qeD6kBss9xosINrzkOJOHXBarWQQoA_jPXQzui5msQbBSbPyECIjRu9-xKAppLWw9qHh-Xge7l0=w375-h666-no

Had a slow day, waiting on parts for get into much else on the wagon so did some piddly stuff. Moved the battery tray to the drivers side, and discovered a window did not work. So pulled the door panel to see a first. I have seen tracks break, gears strip, and other issues with the track. But the window came unglued from track. So, glued it back in, lets hope it stick!
Project Big Stick Wagon XiTPAFUs2b-nbYSO4BdY9ygY6cSXk-pSCmRUr1vYIohC8g5ZP7mzhY2JJqqVC05mKH1Jd1FnCpC_kEUVZ3ZLA8FyPHRnTzgEeQVKJJJYn0bpkh-0cJ1rbiH-wNazmzsm_pMPfy6al4bE7dA9Z_YrXpSpjPygyyZDJO9qJ6h2-GcdO9pFEkDFhVnV2h5ZqAt3d6ZsrFwomCh19Mqirj_KazViO9gJ2Tt5R7z3ZlJ6GchXcHp0mnDYXyQerMvPoGlRodA8C_vNty75K8cRWD-mRh6RLzCgD5R77OuO049pFvjzRxH-EkCda9pTM9-2Senbc0Rs4tC1_eaO3SMkLTZr3W_l1NLXB22VDlujtpLhB5dV4jKPTsQ4MrhOHbwRNhzcSwCSau8RNqEcQsI_5PXRMaUAyYOfmyOfcK3heyhLsLIpS-WozmeJNmHRWXzCtwT1tuGpV8sDfhxrSs4CeYMvFJ7Y7ZqVphlZR4upCnTtKom68f_CY6ySVm13fpltWvZFuEeQXkuIFpz6-5o766hs7Y--TUMIL5r9OcfUeMlxvtBO1i2MGNlL5clqx8tylUKRsn17TUAOje382dxrn47Ow8OWn5aVVzQQPcVyP1Dn57Gq_UVAuAPFVZanG0bg81Weco1HQxcOfCF6gLdeTMiqG8FTACHnxAs_ao9PX5tsI22UQMElhd3gw66yjcS6uYtiGwUSEfYE0Cks6tKQn49Bzmcy=w375-h666-no

Then....picked up some sheetmetal. Made an attempt to roll a conical trans tunnel out of some 18ga cold rolled sheet. i'll see if i measured correctly tomorrow when i test fit it, but it came out decent for my first go at it.
Project Big Stick Wagon -AaEJ9S2c9_iPrjbiSt9sAe_Emr7zmT3PaTvGRU15oAbQ33KfAOARsCyhiFFDN6kiz5LsY_yIagNvjEwh6aBn4A04Ir8IMDeSuzEeb-1VPMHFVDUd0yYF8EBbqW1ljRo49rd6MRXokgMjcxPuqUCb5eFvth3D_VnK8rZxrAi_RSlGaYXKZPRefnoPi_AuBapjun-7oZPINsUb6zUw1WQ_n4qpnKyoFGz5Ejbzj0TkVjqSQEMJ7_BxXyfxIk3s7S5ykP4lzKFE25x_s_qWtvJDI8qu3fVhgjdtcCI_nuQGoIl7s4GWbzRMvC8tjlsuAUpPNkviXGYzMTu1c2MLc8s8AUJRDby-f_EF0XpVMoGiO9CghobAqKHVVYayk9l9O-stxKn2IOP7RK4sRCUkUzkk5rCHKs7VouQ9HLf-3H_O1mRvp-67qnq-zAQ7soZmGac-Ev0zOZ1MO1W7ysnWTEnuxFmVXPUuyVF6yjWG93_YEa1yUiL49Olm7gIbAl3CAomN9olXehJsWCRhZ4aEKJH66K9YOgH2Ump-bp6SBHY4tablcS-3K_6owuTxhDQeMauYQy7kBFHTcH-q0ey883QE6e7zEa847r0nzuq1LV3UqFercYTjgjrYwAjOF1SbVWMGoJr48gWMed5GqwrPp2kAj6o8vKSkoJV1U3lpAlVG7_gDGxQPd_6_cEsFqIzdGNiw3fokGqhTJWbqM0vd0hcZHGC=w178-h316-no
Project Big Stick Wagon YQoy1xmG9guaWLQW3lZgp3apdALRoMhBvIuFdZtnveo5lDSuROorO3iPyDXHjo5tVgcQQDpQIdglyB-1GulcCF2BRzBYcX2F5VMk0EhWkh1tjxmPG1xnP_oiFGcLoQxZGFcpttz1BWNVw8eHAmguU0_L-AM2VYX7KDdPfbly9VCZW9BFNzCAtz5DeoTzqf8VO6uQrdO-0PzXPJRWMelNnoWATh-YensJXJu6PGdpm0kWMOohGYRYoPifBZdhGu2YuAkvjvviPM56S_JYYiydNygtJJYVOMZAT-kXZp_OhwbaoINoUWGQtSvkJkyVW9ur8ux2m4pjKkaBUjYPd-XwrMy24VQri3A8aaGlajZ6qRsSvfCsD9A0T5j3jJ-NEU8oEmryOH0tiQB31TTo2-B9zeIZH9pw-mANRmJ1awSr4jaf6KjVhR8PoIBhGeUYjgyLc4VOljoT5gUfC1uQMa9T76IJRAJ6T4AYR5-oiQF-fyAi_EaWVDJe2jklbskOosmtiBSC4z8T98_nTOJnSsx9v4mDLKP2E04_z2K0zJD1JiMAKa1jkidk-t822K1h9qqsowzfxsG13cGH_I7NKurynW71ebFJ0FXHBXM7zA9tqFxLGZYtehSCeZOQaCP-rLc8xfACFagU8FVrex66ZHPJzIVGDUCIYgnm3QOsS5B63YBB5jUvsQCMggbKrc9uDA3XQ4K0KXPYrR2tpkNeH32D5Ufy=w375-h666-no
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu Feb 28, 2019 6:51 am

well...it fit as well as can be expected for a first shot at it.

Project Big Stick Wagon AFQnwGzbcHWUZF4A7cKb8vQp43GHjUqKkxkl6cH8GmpXaaACiSECzPwjmH4dNPZnsq_X4F_L1HyS5LsFo3alMgLbATO5agqF9RxHkx8wGvGBDcHwlLuFPnwMej8qKUELqmmHuryt0bq9_tUrC3CnMrHAw0lfJZPfIki-18qwwxt-4ZF-jyUJUxmklY22Q_WWFRsDPBYgRhZvBg3WmDbYIN_5Iax1CGn1wERS5YXW6eTnq0V-ms2btFQxNNR1HMOleP3-FkNWaLNaBjyxivz0EGpJdqR3LmE4-hKE_Ph-YycNai9Ne7Y_lLuO9zbPyYDMNFYzQ9dkco7Z23eQsHDfhpbyTYMeZv8jYTuT6fKTNrGR51z14CtSE5CZ-e901iQHWWz6iNRFpK14Nw5IyUBRG5n3ApYc_E9kaObZmeyCpR6WZqvniF-AxvPNEx9FhieBdl_4CxwGhDUZjGu-nJN2VKpqK5jWmt7NNwUoWiGLzR9hsaMXN49kicjTQC4INRkSyQXTY3f_4CeCN2sONNKygij3t1TsFruIMRqT3X8v6ErVbQFmFxaXdz-RzDvDxs7mE_Gs6Rt45dqHowF_XKvlsuHVMtTHYIgtA8w-ASeoJ1i-E4Il6m0iJIU5NUNnc5S0RR6QqoanEYGGw8aQcWT1s2uDepLV1rZN2BQK8-FNcQquanJNCwn1EuN_8zZRZoQjYsWtNT2_S9AveoQewkfYcEXU=w528-h937-no

Overall a decent fit.
Project Big Stick Wagon AlWcoGacyj49ay1rIQjAcVWKmpJOMD9M-p656mEdxDb5ZGKKxE8JAJKJy-kcukG_TanmLRIKxNtoiIiw_dEpIyE5HsZ9gEoJ3taqBqNvbgyUgI0wWUnH2wtQIiVp5ED_oDSO10OPI1w9RCjjoB-0u5MovKV_t0IsNeu_lxKQOeQxnb5LJ0PpLk0JxObwJsAVs9YXtKNnILDA1zATyyBNVZZMMSWjdW3ei7poQ2C1wKhzpi56zDek1Go_K-UoDW-1qGNx0daCIXI-MaL3-kzvSq-kXiaUTyB_EyAvWIoYEDsnZ8jHFVwe2JcDyfQTTWzdXKnWhx-v2Au1oV_ZnnI-E-CN9ejaT4Rstpvj6VE5WMiOwpc2eFeCfLf-nY2cDi983YkPiU3US3atDHBj-Z_Gk-ydC6BruST8QgeBhe7RLUHg36cO0X7_1NSkczNAgM-cOLQrhceqJKs5YZGk_gOura1UnB2cbU32SqMuAi4RTEYSi0YOvsZiDiv6dgdYFHJQ28vf1qKDIrAUZwe1X56ouGsDJkXU2GbE91t_lIMn77xl5dTdWnhbhwTQYNVRrzuD5Jbly7xJz4xIqrqrYWz02KSDYZK56SfZKsTGRYsHOVvnbHIYoNQNnHtEmGppvk23kzchnBaTG6EJuQ43Cu4c6OqECg7Ku-8GYPcF18vWOJks9s5q8I_PfLuqtW1JEmhWJnIeLztJMZu7vsRkicYq2pYu=w528-h937-no

Got the pans cut out in rough shape, once i get the tunnel fully welded in, i can then do a final trim on the pans. Going to attempt to bead roll them, a first for me as well. Looking decent for a guy that has no idea the proper way to go about this.
Project Big Stick Wagon JISCeK3BN_-aWeMtoT3roSBXW9bE6YtjZihg4cvls0JEFFXkkBvXb1PoJSjRc5KwEBqrV0ENnRg_GUm6bUuH4loZ5OYb2NawMgw1J68ZikxrfB-emxfZKPfPL4rTz30ceaVLYMASGmyKbSq_tQ9kOX0x8aeO1XhT1t9oQbh4ltbF_3Rg_F6qc4EvPqLY1iaasFM4B2UM3owA-0ub2Bt1a3Pr3jR8ffUgkqXQdfqpXRW_oa5LoPNR61Lrw9nXTzAujM9H2hazPqHKzQSio8wYaCJ6_5OKX55gUqCb3z_Q5QYCe-VyU5CWhEmnEXUg8GTQFVW8k9lY9TQl_Xe2J8yeh5uQCjVLqmPtS0OOumVAzhHOxOlVolTbuoa5gmoDufQr2aZU35cweenGF3a2vF3ELS6O75LBIdBzUt8ZqumVIqex0-mthpEacTzwDdXLhUQy8Cqc5HvK9xhojbJlMdRX-IPr85HdC1ageuXFi96BIVdcjKGaNzqWCmHvkU8aNc5MJ8bVDJWBedDrk6EjEfis00xOsBsKgrN8ptJocqgWmrkqVVSApV5LUom084g-GK2aQbh3Ga737JWjDKdSkdv7tqVcSCaLi2Nj1cw5FmHK4S3x3wZMR9AUyvcfb9Zz1okRJax9wtySxtbqoWdT1Ucm6kNRalWnxypfhpuQarPhjC3vNORe9HmFQnQOtnD3JfGkfs3MM_alcHyb9M6uAOUOQZQT=w1666-h937-no
Back to top Go down
brokecello
Moderator
brokecello

Posts : 3435
Join date : 2009-05-28
Age : 40
Location : Greenville, SC

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu Feb 28, 2019 9:54 am


Love it! That is pretty cool how you can make your own stuff....I wish I was able to weld and make panels.

Chris
Back to top Go down
http://www.ChrisPowellmusic.com
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu Feb 28, 2019 10:49 am

brokecello wrote:

Love it!  That is pretty cool how you can make your own stuff....I wish I was able to weld and make panels.

 Chris

thanks, I really enjoy Fab work. the build is almost as much fun as enjoying it afterwards for me.


It is, IMO, a skill anyone can learn. yes, some pick it up easier and quicker than others, but welding and fabrication can be done by anyone. I am 75% self taught, the other 25% just came from watching others and getting tidbits of advice. But i was never "Shown" how to do hardly any welding or metal work, just picked up the tools and figured it out. And fabrication is a big part of my Job, so I often get paid to learn new skills and processes and have free reign of the equipment after hours for personal use as well.

I suggest anyone wanting to learn to do so. take a class, if that is not an option, find a local car club and many times guys in them are willing to help others learn and pick up new skills. Buy a cheap welder and some scrap metal and start sticking it together. I'd offer to help anyone close to me learn if they wanted.
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeSun Mar 03, 2019 5:19 pm

sometimes you just gotta do the little things, that are not needed yet but give you a bit of a sense of accomplishment. Shift knob, repurposed from another project, Made it about 5 years ago. pulled it out and modified it to go on the T56.

Project Big Stick Wagon NSeDzmMfCSg_tKV9yY3fbWglFa9SG4wTZ5Ft_JRmXtQkrsrET2D8e-hde5c1cAA_qmiwJLYR-vTSgm789_S7cv-OWZxBxmnFBrhfbFeA0uOWB-G8z8XDpdMMiublDL07GdVTa2BEdh1uhQMJZvo8Rj4hSLgbNQFCF8C0DtunwJa9orSaU6YNIPA4rquix1eGGUDPRG0ItTiD4cmDMlZZct4_Nmt5NRQqyKMt1pqi488U9QKVZSbt-Mt4rWGosxkTNToXqFfzzTlR7upaIB6XUqUV-YND8GX6dl3Cvw33XdOECCOTEe0t5ohK_DQ618i03XanP1gMSRX_bHd-CZKjzRsoo6yL8KspiOjJUFBG8z65WCW1EnmSAutfzL9c-Bq1v7AuBp7FNCy9Tn65-LeVdhnk-WA9p_ZOXgtIg-c5daElAiRwBQh-MeZNrnuJR3j75RrXEiC9HQjl33e9Zf793ZZYBNp_8mCNxKZJW0T-nukWhKmpDDMPziUeeelqQqPhR_HB2ekdhZjLiPFafg53NAwJuwxJ_nOFcPHl_cUs5XBAcNIKD-MuKhRfycy0GBeuTa6wK_HsBeg1xwmREBYDJvOdFgDPnW_N68syeD-7S_TFOJ123tEYwdsSjHTjqCWIU39NhCtHOHr7Y_8OafchcOs54LpVpXtdTB0Y6_Uy4FdnoycctAXMpu2zjc5BgFgyJTmqm9g1hjfe42Dt78ZGZdcz=w542-h665-no
Project Big Stick Wagon TwmB0Xu5aN5xokNpD8Ht-0bv63i5_jTsYXI8UGazvV41XfTc0eZ7JKlOr4q4ajSqZ9RRN0wlTuY4666k_drD_y7PM4yYEHrDCgeBIz5FmAPYAIDvQEs-rIMjpuZ_gUKlwKCWQjNe-KUwtGl1bKCNi4EFwKW7KK8O0_eHnrwe7qbgjd2ljrPz4_9oQnIU7Td9dfiLu_6kWHbjCBgJFwEPBQi71zlxpiF2g7kdTnd5t84CpCO-wsL7U-49dIXbpy5Pcgkfky-p1sNfwjfAK8vy1dzMAenEs8fQmmgsSJCIGoPRcjYd03zN2_vpa5-zD1TzZXV9pyFaJv3MufZtHFfRssscrvN3NBRBTJ1DWbxEhLblmMC2qmRqLlTjvqLhlc_gvkts1J-KuFvM3fChgNgk7bGCdA9SD2vO_cqCYnPe3Oq5_5DoNYa2v_dKx_CKaI-JFinOdqAj4PO36fV56tJ9UgWQyv-Ry9Cq2GCDqsMHNvUGYGV9FhS_RZCFJtMPbSOhETPVuQzRGpq4ZBPRrJBInhHnveufC--OpC7_urvDP4EyJvwzjNIv3ym4eLpyKeo4O3McOyenYMlE_naCgViF0CfAe3iWUJvDexnNVFEEC2pZjI_jPu9YgQM_U5EPuj-FJ-8eUdObWKFXUa7-Tperp_6nGKeG36ZXKvCPvN5AVyHc8KXae3maRD4V27N5qTwtCfvGtlXNBx_5uHJ9Im9ZGzGP=w453-h666-no
Back to top Go down
monwell



Posts : 39
Join date : 2018-06-25

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeFri Mar 22, 2019 4:06 am

Nice project. The shift knob is unique.
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeFri Mar 22, 2019 6:47 am

Thanks. The shift knob was my Wifes idea. I wanted to make something unique and she came up with the revolver cylinder. I made a small piston for the 4wd shifter as well, since this was originally on my K5 blazer, it is now on my truck.

well after a longer than intended Hiatus from working on the car, finally getting back on it Tomorrow after nearly 3 weeks.

Had an opportunity come my way that was too good to pass up, but now back to my regularly scheduled work on the Wagon every Wednesday and Saturday.
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeSun Mar 24, 2019 4:46 pm

Got to work swapping pedals yesterday.

Took 6 pedals to get the job done. 3 on the left from the camaro, the DBW pedal from a 2003-ish Yukon, and the 2 factory pedals from the Wagon.
Project Big Stick Wagon UA00DCwGg1OG9F5joxD0cPLDtwDmlPfxnfewim-Wb3rDPfNuemzBnSiAKB4CwfCAUG5fXM_XFQZVYfc2VSzCgD8Lj0fVKgyvQKd1A6slASQ40BZT9rojt5hxnrygQIQQx4GTH8ej4Aj92z7npOLkgwzc4LHlGB-Kzb1wkv94HxZHY9Vab3nJKChTuXBUfKQbY-AnflWmM1M-hLuvfR_dwe7p0jilNRsbF4pdJtyetj689KtwTUzfMEodEkEOZy87QaNFuzDsTJO4gGf6eIXedI58LVENfHT5P7gV2NHX9Og06BqMgW4ICDWDDUEwqJ7M6H5YwqsiY3-RnT8j2rfgRTzaoC0qz6lthGEkAI1U0vJfeGQXm81eoLRaVzBUSdr7l2UvBihLR_WdBhlUmb9spWXYe_doaVaxrD8xcScSMWqX5lNnEq1-ceGOOPdCcLNAnuPaIox4BzKyE2nKEGpWl_DpL4ej_XW2HuDWJlmCfW48w6sYf0eb2rVjzUfupaMcUcHDaO7SDLYBu2YcNVIDhAMQ74lI2qCc9h3nizwLAXOGoLo6Kzg4mJPzYrsat2BfrRjH35n-NmfjGB76Fo3yXtvQzFG4gwHKoL119YI-VezE15NIkcSs4a0hBMSPBVQPvGsoJKz7YXwBjPw8TEyb2xrSO521kfCJApEekQ5uUWFCGV6aw4GbIkJ70XuywrqW7ltIvEfw8IPf7Q3RbwcDNmBE=w375-h665-no

To start, had to cut the clutch pedal bracket off of the F-body assembly
Project Big Stick Wagon 4Rma-IuXoZPw2QY1KlNPww7qXKc1lxuQ-ZwqxM7JlM4jBFGyW1ZGfbk9Q2k9Oxn1eFboO3LsWnJIrJc0Up09z0HF--aCX9PKHusnLgeGvR7-zOLq2rqbGIHFcvMIr-3Svp-pBimoHS-sSICgua3l1yjR8_ha79-Tl7y5pFwKsuYyauncjEEkBou46pzIUdckCjShes9OFnTKK9noucMky8Gpes21kKDjF7r94ovLMfnd1qGREOrEs12q2-oDBDtA1_aS6ZA64263QN6yaAh7YxPS-4wWMkq8Ib6m2BxxDHdr9xKYQfebW_9cdEJ4w-9RjE9eRQ-aQH-56C3yPG5pFuXoKI-yVpBbWsbanSsiHprXdaC0WA-55HnSKlxkWzxr0Gx4X7I9oJnXSSgAC8rrdUokmeZ9h7bhloa4n51bYsg7rGoU3t1tqZdqM8bEs2rMPcVOOVEoHvfyjXria8q-eHe55Hxum33JH8L9ePczwqK5MeHJaWJGCTfLlZ7JrdVbUNn4xCudvdqdO798MdHfW7wDEKZTj-NNDm7pYOhkjpU48ywlzWC3OXNzhFQ0jJE2Mt6jmw_xmZxG7L41EFOCnFDGa0w_c6_a6wTyovQyEWSKGZQnQsUeKuVfOLRMLPyhHqIRIMdd7qqcHRmohYC0BbgAjYvNG37sJMqFNRKIN2uPEy8_vSqIm8uxUcCERRLBCFdK86qJtTd2hw2cgsSBOCPw=w375-h665-no

The stock Impala stuff was removed, and modified a bit to accept the larger bolt from the F-body and i welded the stock F-body clutch portion to the stock Wagon mounting bracket
Project Big Stick Wagon Do1wnJ2Qu77K7ie-2J6Lwc6pIrT1NZLCH9H06CxZI2YtR_hfbZnJgqeef06YEQbdjML6RZqFrH0IB84f9zM-ud1QleTsfhsGwxi99T_WWFr3SR9FHJ_DnBP8loH4JrAYTxy1HM2yK-nxbl4Yb1I9VQgLstuOsfa4Cl42NEpa_LpC81o4zeOZjobIK0XtDPm0ROzx9pQrNLVxO3mgxqQX_sPRbQw9MS69WPRd4Zj4k0iUAlDpoFPjJ9t3D9TSPqI6r51DrvCgQKpKvHuDYr09_2-3V9rB8Uxlhg6kFLtJrzT3kdzFsBm-djT8wu5P_LHWahQV47SJdUuFgfw3mm6W7li7ZpasIa4nq_TO8ldnKzU_ohQeLBL3u4O8F8u7A9uIIuO-9tGGJhW_wFH5kRv-A3lzSOgTekNIAQrRqPH8RXdumUA3ZlnbqBYFKpF1hV7ZfU4HkTXAlC3bM7o3V6U8sQjJkW1t_msyARFDceSsXzijvy6dNg0DTkmaZKC-sHKA9Nv-IkVwuMBGuX5IlZNTCjsZgYIWzlxabH76dZR5Qdq56pfHGDraCgSNZRPkfUMFZ22MD0RitrSzp9mzjuJk5lwmmhANUdaPr3WiItbz44NQM0l2H4EJMsIL2otBcMUSjVk06dIFbnFkL34mP3RPbBP0MNUksUMrixj10HYm9Tp0aLDxEjwCFIB1h6NIIpLU6-pxG1FhxmPzdCyeKHMdv4sH=w375-h665-no

Then, due to space i had to use the smaller Camaro brake pedal and it had the pin connection for the MC on the wrong side. Simple fix, ground it off, pressed it out, swapped sides and welded it all back in
Project Big Stick Wagon Knd-JC6bnnjUhBq9u_UilQdNrZQTcvhwTmRT8s2rWk0cLLvhtbdHS4WSR3i1SKeL_LJKbM2wFq4aUEh9ymW5rxBPxfxHauqXu8Dj10eT5vsvF2lmyXGWzDAzMNyssNmR5kQu8Wg6qI6nRyZCcW6yEroMWmH901NZgA_0EGzgzng5QUFjZeONoiBS4mP7won_JN3YIoTIHy6QEa7k0re86XJ9wYHuYaGnY7wgw9Chs1oSTVweVcWjLAzuoBGqHeM0RV1DT0MWo4qEtnvRBgsFcEKEp0t2knfBhGKttjoZByurnkp7dOvgaED0AQrsKxxn9tTaL6_mwol2gkE9SDELnUpMoe32KIjwe8uoEYs0-XkD8LBmxY2upg4GLPSB5M63g_OTagkNzI6Udfm-LQePJ2DdSNxyu9xc8Twzr04cJtxSUjwRaAB_P7_1mG0TiFuhhCk4QvP8zSU8hTp4XniRUJIq3Z_RuyD0jtiaZ6iyQCgwpjNN_j7jjO14yzSJctayE07cb9L8LHr8eGnULYfN5h9ullNH4iQ2YyZ0t55_Rs4puFG0Urg7QnS_GTP5klkndIc5ARXysoEO0wUhsl67uYCBOmn34nMIZxvXWJLWjuDheiMIW9Loy7wD_RXUt-cO9jiVBUtEVhyHr5vtLz_gPjgAb35-WBUJOLg5aGRJVRj8QLbV-3mi1q6eA4Zj8PnS7YC62ztOy3Z-tiqKo6ac09ch=w375-h665-no

I meant to get progress pics of doing the whole Throttle pedal, but got caught up in working on it and before i knew it, it was installed in the car and i had no pics. But i cut the DBW pedal arm off of the bracket leaving the pivot and electronics intact. Then, the Stock wagon pedal and its round bracket were bent to match the DBW bracket and welded to it. Then the DBW pedal was simply drilled to match the pattern of the mount on the car and bolted up nicely.

Once the pedals were all bolted up, the clutch bottomed out on the floor pans well before it made it thoughts its full travel. So i had to modify the pedal and it removed a pretty large chunk of it. Everything above the silver line was scrapped
Project Big Stick Wagon 2I0SRpXl9jo4inX1UCCPwPlVRhwpjtrWXEnxQ6gJNwT_xteOSI9nDLDJYq-wtMuYSnTadT5ZBxUnaB1PNoLjyXQtWvUm7IF0fwTsdZTfjCKzS7QR4PtaqeZQZoPf3oE5K60uGancBK3gkGi5Er-yq9m7skbr_aa41ot9FfQm1039zS1ik_ZH-ONtnovjoV4r18PJAAW8A_k_89Ic46BfYMDIN6dbAz0njP8TirqaCZR0yE49B9xMl8WlmnpGV8arVUgMuObeAXKm7q8ETbZBEJvpDNFSMRMhENkaGk6Oat4xqFYvvu78-UqNL4IQBW2BGBmTvoNgfx_5UE5mYWYQba33cYQX99BJSpExn-KS3osvP86zD-Km5TbPXReHRrlBAevVvkNTwl_5jcW-vgQPsLqgbVVLIQ47Dr3hUI-lfVNl7pgQtDfQIPW6ICMprYWVjpfPBkDfsqI9GmAlCRl0FrTIqYW86R85kZCi_cgzxXQ-X0SFQRFZZ0P66-Z62HwwLmmNboio7cy4KNr6Ex-0hloCnDU2RSz4BUooml6aFs_CMpp-JCajVMc-CsUceVc4V9VpXugfZrEOLTx_xPAYzBrcZhDVWOOmtuYrMu8RSsrA91vCKmO-cJjiX0H56SFcjvBORuePV2jPAKiu-oJY_2LapHhRrKK5hcPKSwS3dtYcb3OPA6F5SudPcAfsEyUMnR47ST9yyBBF78Gna4LnNJ6L=w375-h665-no

So it had to be ground to fit on the front of the pedal, then welded back in to give it some strength back
Project Big Stick Wagon ZYg1p_DB4I0b14RjDNrKoGOq9noiqfmoeYioCP7-37SDbyytpwbpgNgveJ5GQ3rhHlzhAMBodx09_Ic0uW-AFNeDcDBU91zrDpOp9CRcUYiOz-y2LSEeRy6h55pJhhZImxbgPtGSVs41GzBcno9KtqbiSz0aHgPYhy3vnmaGiIz87A5wg4DqJt104_XeHBoBaDEqTVCWZkCOJF9eeNt8udjfsg2XuE_sD7sJUqWEl14ogpkC2bbz4R3guvBHh8ukMJutzamue8FRYp2-7lq42R16-Mkht4QAERG8TNuWq1DNneyr6rDOIXWaYr6BslrtVFj2wxoH_I-UGC2kSuL4HUEksnBJdzVHy-T08JkqAt4T3qWdT6MOfYDXUj3klFi-QoVVsrQILW9qjctG1VhmZhv-GspOXXuuLFC1vkoCdOpOyjGZ-JzAQq3Sy0lGrkL64QZk6r3LynCFFp_3J6Wgd4XkSkCrevNbsOj6oWXWFvW-F1v9cqtOErFdLVuScWFQ4-I_YINf-pepmBW7zwfqppeH2kFLZCDkDEH479BDoKk7HfB8RrqoTUVLG3hDAyYKJfpLyhE2s5sW4vZLW-vvppe_7TSIytfVRTeVXZu61rG2xG8bb4a5tqb2SmPJ0y1gmV774SokHTvthrrO3LuZyAFIiUrDs9C6oVvRy_6zMlysYZqk92RiJ23fILfY07RJPIaiWLidqJh90BWXnjnXAsWE=w375-h665-no

If i had TIG in the Garage i would have done that and left it just as a little note to the fact it is custom, But MIG left a bulge of a weld that i ground off to make it look better, and it will be painted and most will be none the wiser it was modified.
Project Big Stick Wagon 06jrSwrkG_nt2JlHD-hJ8QNd-71C6zpbLqcNXrydAmkUcmPVHQqHbQrsFgR_8LnQRda9I9njatDi6EfaWmobicODZOYAZqUpumMXZcObBf96LE4F36WbgnKEmTj_r3J6PGIimcpayRwSafpdQhnvGwcwDUJZBk3F8QkEHGOhGCpQRC9zzP6xy6vMmJQx_tOJow0gfoEeMfeXV0BT-_WdT3ERp5snOdgnVIVyRqtvqezrDklTgJjza5TgPzHVHbdEJOrY7hGV_w_Yn019TjC2COAedJDfMl8qu_OWU9evdP9DJqmAF4RwzkcfAzhWZgdxRNCz25UKUx3mvLUzLxQm9kcoiZxEZYp0unhzm8LGPwqAhJi4-kcSbcsVGxorGuxadxyF6ORTPh_MT9NIEvwa_GLB76j9tqo1PmAmTvQF7kWQWFVNKWkGiryEWWZU4CbMna_GYD1fSLXywWWZRrAQZLQ5Gn5j8rAqTU0jXkxbvI5IiJ2NeruoiBWxgjE-rbzNWjamNIEUj5t9klheeM4XF-cIemePYbNRjRWcv7d5_Pt-umoSN9dVMkeggFrLxuNiiWkSaMHXb3Tpb6Nn4gHwqqmot-AiHVLi-E3RU62dFUBKcDK37uAbB_26uqbITM0Bd0xH9lecZt1mN4vwO35LItwmB0b2VMhRpfwPv-PpZGJD2tpbfO90Tc1dC5nGFXUAwniWIu36d1Z-xk5uTLoi2OkZ=w375-h665-no

Now, 3 pedals where 2 used to be! about 80% done. still have some welding to do as it is all just tacked in place before final fitment. Then it will all be painted, and i have to mount my Master cylinder for the clutch as well. In all, it was less of a headache than i anticipated to get them in. I planned on 2 full days for this part, and it is only a couple hours from being done in one day.
Project Big Stick Wagon _wMmxeWMxLFWIDzmxwJWD_iGwUKtcSifmMNM6eAH65U3iM6JD8oqvtnQS0kk7dKAV8bw-MZgkqqqTeL-GWxLjIaJunELq8Vb5yX9Irei63ucA3loo4flkukl8gELumaRf1k_NYRiqLPB9HsbBGYOQtSEtWp2Qbzjl9BClHEtmx7QuOBReCpke8bTykYY7C9QxoDiHxUavAnfT4LUZ4Llm7qA1dfh4AQNe_W-yh1i0sRZY7R0Bkd_1sz0hvCH1jy-kgnjAScUhhLYMFC8sAl2SrlRaMXSYmfeteZAWOxb80WlKhDTjmHyCUaK4JIq-nRp3Kehsuk3b1Thqhv_TUL9VDpfcD_TbnrHQ-SLFIUuhvwR7_a7l4suMGUFtgiLdY6hi7W0Mvz2y_FD4_brgpUABQUzU324tyLQglAxgbpcZlVutSvwf_rtgwn0YLmMJMwadej5KIx1cCJcI2xCn9cSlpxCl1LjSyEap3sBxmFELTfXsaSEgRWD3bYISUxf_i5QOUjCIj37PwBH_tZBk7w0r4ypZ3zHxdRfxE8ZqWNSdrCKby_XryjVaJ2jk_iV-Ozm-sx6Z4R-wV8zhPoPnn4A7yQ-c2eLPkW2CLkn_vrojFRrBTZwmwfssWunBdOLXc3GZZ_fzE6ELfa-NMQ5aSsPVnPA4Xua1BSpGpgaNfc-P-31q6a8i5WGA3cgbOtDFW36v2NjwdFnIarmCBd8c3_PYNcE=w375-h665-no
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu Mar 28, 2019 11:28 am

Here is a finished pic of my Throttle pedal. Quick and simple mount. Tried to not overthink it all and just go what what seemed to be the simple solution to the pedals.
Project Big Stick Wagon QjZRgzJAIpty3-o3Bz19PTLQtezvbrr3Y4nhUTyw75I2C1mNy1zaJSK53EyycYIiPEhOKjwqXc4CpFh5JtpNzNDISeBiNqHpcNyrtrRZ5-dV4HPMDapVcBs2ryOv9PDg8thZXlVvKwo7wXwnPW8RYLp-V8Sy67yH85AzhAi0sSaslfXUhq5HOhh729ZANZ-7l2OzDhYnGSI43cx1dKiH_iv8m3O64ZWyNF4hris9FVS42Mc3-AgcDl5ErNFWKNa1-Y2jAQnFIcR307RsYnUTAlAIObGrOn-QMAKAezvQmm_Rv6_SzJEhMvisChWsgLs-RPNicfPUs0qPNKYMARbcF0mLI2KP8X7nzxRLCQ8sl_tA4CQapIBhCakdLtwgVjg947iqpn7Mjt1qkgc5TKmFGXd3x10QWs09L8cBPpj65wz4mqsE0Xr_RbOJ8bVKoFvDoFsCY3Yu3OzhO34x2V0K3d_Sqm6bhRBSdVPZy0m4VjOHnI5-2LXIP5AJklXFOCAdO98S0-qeaXvp1cjk1jIygyv1G_0O8ba8lsxFQbobHHOsH9yyJnB1g0ihlGz-5bgpXlM51RRwL1VkogtbYaWwszJUU2Ip80X9AVbAlL_C_H8sA3Bf3Te50d-Ukhi3Di9_mmlvCv4-pNA7hpIGsO8G5yhz4H4gUbiEtPsE4idbKw0rj0E_4yfITN-extetvRoOPI6_zGWyJ18d7OV7AwJVQp7c=w1666-h937-no

Next up, Headers. Didn't want to dive too deep into the floorboards so installed my passenger header. Driver side, as you can see from previous pics was already in. on small hammer ding in the #3 primary and it slide right in place without much fuss.
Project Big Stick Wagon HLSHofFhMvoTXsqizNbdHwq2uDgAqK_kI52SU411oKsNcYbtBp76j8JjcwvcKOtWN_zuhZs3vx9UNLlSqBaGmdXGeZ-o8O7JpH3vsGb2O4p1MX-grUaGYCdd0pHddJ4TWtg2gArbipm96pxH3MRLwhW56oVSmfzcD0igk6mb3MGa8cNxFjr2kGuWGeMxGwIhjD5u5IhxGhZJaxWwFkkx7UwJkIYz4vIiXJYbLKxTHarp6Nio_f1y_w0lFMQtpbSOF3WKFha8ydPJhd_YgCJciapuHw3f3LApanHXmGr_9Fda8hNrvSpTP1ccjHldNdh9PgAb5mQCbPxCUtn9vnsyZ01cB2T8-OuR5NkLANBftKvwpdkSnh-8F7-CaSRBoZ4GeOLY-AMTDRp8iwFZuF2mwJDTryf751tT8BYxRljnP84zuF8agxR1SSjOeXRYcE6rio9jimBtRMiQ1Pzqm2x2EiHiHdYJpyjbiypHNFWp4RMR88kkcldRGkTOzR6B54p4uTtaY4-__E2WOD2i_pancjDN0_YHA6fMacMySi1rRbE7N1W8-EqL6oCgNJkrjYJ9O2UF3bFzIsD_bxiWanjcGuIGf3TB4BDo9djTIOix3zNBTCCaAD9rhaenC13s2Th5fYbAHsa1UtK8QFNpiIZMCnu4ixSfqzCTBiFqRt_m_FW6arthVOd3Dk7SB0swz3By3lVHl3aEj4TO4UTv1705xiPS=w528-h937-no

Passenger side however created a much larger problem. I am use 4th gen F-body headers. Cheapest once you can buy on ebay. not my original intention, but a buddy had them and i picked them up off him. I always planned on 4th gen headers, but was going to buy middle of the road ones, not the cheapies. Should have done it, but they are in now, so i'll run with these.
had to clearance one primary for the bellhousing, and another primary for the LCA mount. then they still would not bolt up.

As you can see from the heat marks on the top near the flange, i had to bend every tube and actually rotate the flange a few degrees to get it to line up. It was most likely a manufacturing defect/out of tolerance but it was 5-10 degrees out of line from bolting up to the head, wanted to swing the header out into the frame rail of he car.

You don't want to know how i ended up bending the whole flange at once, just know it worked surprisingly well and now is all in the car with no clearance issues!.
Project Big Stick Wagon 2TzR3Bp5X4aidvb1re6FfI0VM0SWicSLzw7NYPC0aJR5LB-6-QX_Wul0iMT_DJt1CIch3ogRFfsN4SGB4G1uUMaKkBm3F6fdYszvLkd7fmbNgmdWskj8c-JUj78REQAgkGuWVtjUrIoVbUzo2I6vy8szNbEgj9BBAKt1dfKKlAk_BwTZTOajzd9yBow_jbpIQqPVfcTFXxfOr0cBmrCyvzMRgvarEvlMUk4mTgIQRUFAADMXgRmsUktmRGYio9apxLEynDauOzvhgTGVkZRZedogT9PRYIT3JHZpLJbvEB79I-L0Bh0OwRymWrOnz9RW7luaEcaZSZY0UrVga6lJBJiktmXGyFya_gOfbislPo16uGBUapUCixnZSRqBXlszJAJE1EFgf894mOPM9br0MBCFp265kMqeUh0LqqPFyYgFJZz5fUvj9dbgBAabc4ai_F5JVqcSHV-KzQwHtSllgWFb8tqWXOmpWwsF4kGOCwrJpoS0Bd2LYcC5AV8FrnFsL_M33zWqtAJhUij-N_2hcRWnTwXFj-VFjPAchV03TKYZIBgRZEOLiOA99E91RhwJR6XOg98LT74LXYaSa3a21lEgOrmHvYR_KE86QsQqhZ3mUfLOAGfiZnACRHQA5a1DRRtjN-MPA1ndZXWjtKoRsx-BsglY-azSEFJMqdEQi9V6QkY6_kqCp-gaq97eIF6C2dItdjn8PmEGAniDsfRT_Lrz=w528-h937-no
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeMon Apr 01, 2019 7:02 pm

Was not able to get my pan's bead rolled like i had hoped last week, so moved on to other things for this week. Pulled engine and trans since placement is pretty final, so i can fully weld in my mounts, as well as install my new clutch, clean it all up and paint, just get it all ready in general for it to go in for the final time.

Love the T56 for ease of install. So light, pulled it alone with just a floor jack for support. Never could do that with any auto, or old school iron case manual

Pulled the car out of the garage. Interesting with no floorpans, no brake pedal, no seat, and no bumper to aid in pushing it back in.

Project Big Stick Wagon CtAucBr98qB5MSrGkEPisUlLFxKodXD_WD8oDyiec6eqUH8-HgFp4aa4o4Mzdo8Hm_pnszPNjwqXdOXfIPLO1I2jMhQhhVJv1ZXU5wYGm_JoomH6r8qUk8kXSUiiFK7VvV02fvKTuKU8-GYmuP9vIP4rhDETtN-g9-kACTPB4GCDjqUXSZZ8eEsN6w10-ohqkG4u778k7CNgYa-07mXhhq8spra--e4-sN8z_D0akYBVND5kC968D8f7KxXjQ4wwut7UjOz7nBmXYyl3UDJXUypRJZmowwWZeZ1UWW5XkJXl2CZq1n2evCepC7wyjuZAWyzXNcMxN_dGCnZ7o8Opke-VP9GMkDeFp4REY0PsWwYXdMyQzjE9Sr-XRWTiBitUXmGfX8ybKawYPe4VI-vi_EeKAdPa0JWQkZnnX4q0IUp0DQdVVEQRLo_LHqOQcuAKJKSX3sIHcdlGOMrptf5s7zIOs3mAR5ZDkb3m105qzrSha-PfrJjNewpK1sarZPgK7Iq9VFp4M5XvFJpv63mHLR42LDoeArvp_XAwAjCRAuZ3o5MfOWIr34h4DueuJf6o8TYvsHGJ9ObrRbx0n7p3hBOcF9ZGw6GP4DXGKT80Sp64Yc-yT2YEsBSBs5VRWlWHmhbwlZ6eKVkdVsOPeUMTijS0brrSlVjaQxE8aXNzVGrad2tUsjFrjXXWQs1dqsfQxjDK1FPKeFYgY50WsqCQQu_H=w375-h665-no

Project Big Stick Wagon OYXJRfiUcIV6j1Gd1nZZT7F_BggvSERX63R1TWn-2Q7u_TxtqgY6IhUSWQDZPkyMlefXBPlc0aZOoI-uvC3PLgT1iK1EbVPBuvcGBhGjUaMkcu6F9_vqom5bGti2i32xtwSgImJ85tUYH3dsTzR3_OS6JmLBY9RuBOTzlyzpjy2MSXbtKDKcrHU9oq45WpnIcn-hHfi6bV8oqDNLuWM4fo19fmNZ6azCGfNuBh02z1fZV3NBos2uRk3cmyiqiU5K6pSnqvS4vpl5lgfHVBhKXRiViwhVxvJ86eS3VPEy0cNhuoOZ2QPPVQsjmQefGf-vFmBMMf4XjVTWDm1QCB8vsjCHvJoXCSvQiJsRH4oSYDZ0NDIDnXsutW1nKnusO77vOmRAQYMqtJe1KtUaDSCAtBRCnzD1ffFDl-tyMv_EcnFBoOdS5ytA4-c4t3FsGXRW-T8SHP-fdLeOmu9IPNo_wDglDDdYyQ5NqZgBhJ6JR1v_x87U2aFLuXSeuIQjZ3xgCXZh47zekZY6_RsEan-_9UGe8kAIAtrWQjfniHNYlGfXrLys-D3PMCxRzFHDmFs71XjtgUShuVjFHYg-IbPdMEiMZqg8PpOSRPuMjsAu7b8aZgt21UDJ4G63PXdpO9OKgmNKBuRkT7EVKusPGse0c04evfUawHV7upZbxAjtCrdYCsBE0yVITiPR7RfFgDtXbj5TMHJsK6Exn5rucEv_CP48=w375-h665-no

Project Big Stick Wagon WDEu5yObqDxYa82_FbyPpXd2thpYpnBckk1kcDytu6yRwIghVha-tgkYCvg3rXa3MoFX9DVAiBQIAyd18H_UVZY8hDJdMc-TwtuhNnwo7jVB7cz1KQvWfEskfUw1c-y54V_qLqz9lRcZIu98tm0wLH3503D4pHtvzfzfFSWC3JQ5aQ2uYqHYr-sdOw2GUbX31Fg_yHtF84WiiwiPzqmUtmHojXydTnIHnGwaVzTNEzqra2-ulQGx3DqLiaXgBOQNlF5dS33mAjPulCH3oZv13JnZbph71aHlDBvZf2WjOaNq0QyR3v-wRsJUoPFT95Iq2RwDQDsneWszNcV1SuincjeFJJBSmkP4Emjh6IaNa3tduOTjo3QxdAf09egNXPqcass5qsy4OMDNsSnI1QQl24Dx9eL4Qpsex3xXiT4xvNzKdQOry4ebxu4Nysu8Y7O3GJo4ukqN93BF1Ofl78CoPcziSYS-hud9Kt97JBd8U45kqhyH3-y1HCC_Nu2ujorihpBT0imlnpjeVHefy6dvgj4H1ohgLdjc8iCaxAq9djjmzmJ9X-cdYOHywE-mHtgtuDDLlXm0gUJlvH47GWSO6VDozWOGQVAqxaLI7QGFC3ZTSuO8PYPg4Nis8cB-eakY_fSTHe7lC5ak_Vuypeyn7gnhVY1czq7NUvtCWKCMohRoL1cGIAbq-f0_xJOxzEn3BzQ67iHunDFi4yxIiJnuqFgO=w375-h665-no
Back to top Go down
rcktpwrd

rcktpwrd

Posts : 101
Join date : 2019-03-06
Location : Raleigh, NC

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeMon Apr 01, 2019 7:34 pm

A very cool project! Cool
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu Apr 04, 2019 9:08 pm

not much again. Floorpans are being a big hold up right now. Hoping to bead roll them saturday so i can start install and work can pick up again

Just a little cleanup and added some color.
Project Big Stick Wagon RMJ0bGJUNPQZECeaWk2AhKRF67Jx2EsSoj3tRxvEt53S64cWEqX657I6Tv1RIq97vkC6RK6cscqyxLSI8k5qIA51CvVRGG760xwG6fS2qgZvl0pVocWfem5nAF8-wU6hml1ltlvmBP2h00n6RHMUKiVTGAXfDVvuhmcR88BTq3gwmKDn1aK6R-g7tgb6zQxgz0EzJLQu6ygNM-yJjQnFMh9EvgW_raqXEk6FTYdVZ4iprRcwDjTemoJ8cN2yqLl6G0XlpdmMUSbcit4vbM2BWxZWoNiN5RW01d6uQi5VxZ9C90jvx3KcQO3fmLhoxwjTuIOua4QBf3_woEbnFU-93JfDBTZpU2XdM8yzmMocQY2fYb0Xsgi8IcdWNP2vzYk8Lb8bYR_Mjw2G1sQ0ezUK_5Xku3blIzo9Uvw8qcYAyGNoeo3GlIikMKYhhGZ03nooXxHHxm-2yOhLo45cC7lnxrRQsaSDKMKBjQ7GYUzTEYL92nDMsZFuPoNnNDdcDFkrwA1pkvdZHyDMXjWHttoqupWz0f9A1OJf88rNE1vhvdAhmXVjJn3J-gbf07VnrEdri4geDNbLwFVgryneJzgE-OyPgjFDs1r_ELZTCwB4Zq53PgN44-sCY7EfaqIK130S03jpIWDkDTM1OXqEI6mFohdHCdj9cAhUlihLS7khQCjRFqdvWN35PgGtlExzBUZHt_mWO4vZ785YtWJnuNiD-qJl=w375-h665-no

Project Big Stick Wagon Stx7EkfkldurDSqhM_zPInWrwJK6DUQKZBXoPLgxSdTmNqWPeMsOuGbMd97fAVbN1UHCRuDO1VOQir3PyiQfp16vnUtDf1i8ap3fct7v49ivIAVjMP5IoLj5a3zI2AksxE57Oh6FRs7xEztvvfY58S7FkBh39nUUP-UPMVzqsnfKyJXSpLT6RjkO5HkZUqDH8UbuCeqEgRSfL-KLi8_oAIB8asjfDmY4RUpHKGwkLsYKUXxsN0fdS_VZY4Ywg99svjPmTudKYciDAxH8haDDRqZzqa1qhEk1CpbR02d0Mu-1ptMhxkH2ZghTsAm_pNgqY9hIZCpMNNbt3VUWfIQcgSBxPISvwMlcPjgXikHA3jr5vA3x-fZyD4bzDBz0eQM5Ug_25Xvf7C57-uB3HHRGdBLkjg4LsD4Rn9uHjv3HVQ4Z4HnKur0-rpBat6wWtd82ojbnLqhGOfX-41bnjSMv_uJIX_tfr9l6r6faOYnXQHeVBbY1f7Na9rA9fJH5W0eTaaGoEunKyOuwb4RQ1Ux2mLJyoHVnTHxrMaUeENLPf4cTNFk_kznPZSnpisnuAPRE-M0HCp8qAOAOMpRUhG0nrOHx9EDXIoMmbX8jJxoN4EWQ8E_tGsvsD1EVeWTUnIglIZhuNVdjj5DWgnkJrENsqWFZxm5BsPqCx3xLNAM0Cinfhn8fvrKrz6v4Ar-KDyQWdGP3nLY1xVV4tdcK_4IbrmyM=w1183-h666-no

Then started to layout what i wanted to bead roll in my pans. needs a bit more on the rear part for structure but not sure how i want to do that.

Its a part that no one will see, which makes it all the better to practice on with some designs.
Project Big Stick Wagon DNRhphM99rsZbb1b8sg5XbDKMzA0LkLk6GF-t2ouxKgT942TNoQ2wcXyJ6-dvClnSvWUY6WUQqL0yfxJg3HF0nrs59g-iL-z_2YrXpi2D26DUtDGobtCWHAnomKkaAgtN5gX4ux0liycUPT-CUk5b4Ue8KgviMCVi9qW58zNqVE-Lc2H8L_kkHq26trWFu_EyI46eRrGwXNQ62umjpIOlFamoslTZo4biN7xFu5yu4XahblwjGOydZleZkjQUMUr_WMDlPRDXDia0qeLdmm_LnOSvDVPDKfDsT1mONAYXxsNl1BkULigEkY_UkV5x24i7gcW_d1x2spquhWKEJsRCJHnRCl4y770ep_2v_xZG8sJF1PiXaIpTtVmQXIaz0aIYD-ZYGkzfOTnWZOZ36vSMyRKcPfYO3xHuOn7k8UNLhZtlO_wb9cqx7ApLF-2PAdNNqzrSHGnsVFqZ8S76UltSiYxPmZCva7btkMJ4VOCnFZbtzst7ECQrqNWS3A0CFAyvzGOfSUxHIULIHw6eV62nc8BxYmYCALTiGHZZP7-4KNLYk24bbBnB5q42TFjdFGwcV9KS-_Gnu4Llkr00yzY5bO-9hcJeRQ5SYvoWrOdKPhhCdW-GEilIHB5BGhNpsVALRm0ek9USwIyUUDLpkXGL5j6NR96RiGtLCfgLG1OMNsaLN7GmwEAzepl8YzXS9wQeblbyjHrP4s61Fa3yL93giOV=w375-h665-no
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeSun Apr 07, 2019 6:37 pm

Made an attempt of using a bead roller for the first time. No instruction, just winged it. here is the first panel, Passenger floor board.
Project Big Stick Wagon 7n8BZTZ3UBYHCpVTIyl1l7yemVpZcrJFmXG3JtaEq6SAawvcgis5zjhAIW--Se6OEnTISQXtWJq54zNVIX4dnSgllJc0ej16mGhDzQHUs2arRsWegH92jX3qJjHiQfp3ZJc95dEWdrINtYgdMxQMpyoO2eCuAoygsKaJZMIiF64Dqc5GW6q9bL-Uv0O7QIkV6gnTDjN0nJ45Q8wQd8lC35PZqH6fiMEtP8-bDvoq_hzKu0snPgKVyDhYQq2k_wPdF-0OiBqzQaUhm8UZ2NRgshadFp9NteFDpO9JGfg-8S4FGB-fZAMQ9b8--m3RL5C5-TswVZPRt2kzVYi7P_jZ3ZyWqAYzXnf_fCzqCe_fUHKwNa2CyHHiETN5do3gcuqVcFzCeOTRbv8MHLA5HDgihD522-FGKhVEf98lrVTXG6DgG7FUDgHNES5lGSX9qXPK8M64jcZGzrkwIjUBY6MHnu0FJuCjoKzv1EqabMb8mpK2anqJrq6w-YllMVPWo6Mq6dI1L5aa5fCTf6aZgJBaJPVXPIfay8Ymnyk8zcE4WHo1JMSESUkON7XWTQ2SVWmciMSuFPewggaq6-w5ismtT7p-r8jpasfAjrikltTD3kMqZQ7E-L7X_QsigxHRxUdGZHicNP_UwA_zdCdr3w5CGU_jS84ilw93m9vjJOXbgsfdZitjNPy58nxvGvmBrcBhoN236hVYDGQ9gYSNVKnTRJZz=w375-h665-no

Learning curve shows, as the driver pan is a bit better, more consistent.
Project Big Stick Wagon NkWk1neT4M6xzHkNJMaJ5p4gYJ1LlN39aVYtxdiIq8h8WmXkM0rUuR6grXItC4m5wvGERDiboNhFUVrIjgAHOrXQae9mU8-EPG3cKQu-zUsIop9iqJtxYWLrsQgjOHsLq-dqTqOScsL2HbjXzwLJVIatZ0lhD0AY-f_fDFok_UK_f30O0sR8Jy6s30ldRRJpIvWmGPMAPkVXDX4EEVct5mqT-O-WoZHjvoYfRv40tE3OostCEIKYjX9IAA6NLVa3GFsraq1-FFs-lCqZ9dTaLtfsa8Zua2gCCJaNauyjMrCMbO0HWr6m6KHm0ktuVb3sfkZyzWT2AMXaKjsWUo09YTxmtJzC1KQ9q3Stx2gTuKSpiIFCqGOPI_SBdND6DxpYsQaHuRR3rtfOBNMz-BSwgrzGzvpOQMYwomDnvzKRXCwVQ8Js0-voahuhvbBjIZzgBN8dULyZyduyEzPtddc_q_8jCzRyjl5aV0p1TlN0XflyAYQVG2nRCtIAmv1GEIvXHDrNuS0F6mydv18T-Y1nFYC5tqZujAr545Dtlvn9STvKPJIsCjHHs5O3F9Ao3-fYLi1WpicUbVlzrsBEb1_kqjQPZJRLcLjC3RHf0STVtKzswVO9lk3hXKf6PFuJQw-nzq5iuVlsyWbO4p_NAGwi2ID0VqlLSKmnd5RfJDaVT1g_DTWgI_OU4AIj2dIiridWPMCv8k4iqAgmUsX6ZTs0o0yd=w375-h665-no

Next up, the welding started. Cleaned up with a grinder to get down to bare metal and MIG welded the tunnel in. Light massaging was required to close up some gaps to make them weldable as the tunnel was a semi circle but the car was a bit oddly shaped.
Project Big Stick Wagon P6d13fiM1M1t8xeD4syNgtKC3QLbao7Ps9bLa5UaPEj-By0_X4q2i1n0tx5LMq1WKeU6NMBl1mYK6adSgR1pd72sIHUxGMkTkLDj39a8Q9zqDI_M1SOqcOuKzsbnB7ShjMI4ILt9pi4yrRlxUuRrEZAMjdhUVfquxEWm6k8_--FHijC-9xvJsw_YuXePAFFyZK0ubxXCZaDK5M3SgLmrnItjCm3TAMbvkTjI2rFen2O85gAU9wZd-t8oMNsVrVEndoMHYht6_AhDqUhl7IYgQKqYXs7r6kbRSpRlqP4vk2hgJm2hhUEkwJtdZKUPmlUjCdVKWgkf4G5yGwiZkJS4mtxich4nkIkfo12EwXJMs2G50K6D2SUAsFZQzUPKdpGP1BYlui8rVBwLUodoIkY3zeYx-bKn4ZTPqFwkiw6CKtCI_9RUzVwI6kLP5KhPfdm-f89nNiQCqz2o1TKOYdeEaeEVaB0aW6iPynwpF-gBKLFUVs-AmtonwJgUsoSgZvgIDN4CU1bVD3zUW2oIJdjb4L-bojk9cMXAHa11VKxc1hA_pA_6KMFznWROKk-aSb9DODk8aQQSSrVebEj8TRtB1FU6FRclhmy4POERadwWJmmdy-osI_Qd_HJ_LDB4KuYIPOwN-pCk9p22-9FnCg9okbj_eWRjihF0ATEBax-_02cfwAG9t2mhB4z3yyUi6QgGFSP7bDftQfTRWevtDnvw6o_K=w375-h665-no

Next up, the pans themselves go in.
Project Big Stick Wagon KuiOXb1qJr7N-RFmNmBjN-j0hhLD2dnYpAR5qozO0xADFwdYpl4BQCqzSwHIZMaiDNhe5j6ay7u687MpzK7M7cs5sQbKDSpjatzpe0Jog6oThv8Jjuye0qdeXobNHZgjNDPz1b76zmkMTL53tQSHzFK-B4Ck2raWgmIg1bc_6t2JQEwWWzAq6qoSaUFLDG1HzHO1_gWl54Y3tRpuSTpLrVLMpAlVaBkl0PUXf3lPzXTvLJ_RL6WG7VQH4TtNfdsnHKPbMH1-sKSYC3wfbfnv5cVhgeKzXWHMAHrQvsPmIFE5CV1HrBkZQFiopXP999l8HMWgBsmRkLl0cxv5oNqO2crtADI1s4hHY2-v42-2DckuqHHKLGePQ6t-X2LoKpjugpfrT3kZQSoL-fZcfWSPM5oefe2BzohQagGXvpe5qoECZHvK5HVDseOFiCKoEbHWgIT-PTMBBu-zHN-4-393tCcYwiPYYYuIblA8feP4gfER14y0BvIQOQFgkU9oaLefjRhsJBenBDnDxIcdXRFPR7jDOC9WCUBYBF-KhvKL_hxJ-wfaLhMEmkJGq9zZYLcAERWbxQ0ZngrZKHIVNsc43Q73oHLnQ2BnZS0R7NaC5RxKzr5zCB1puNj_rJfO_vD8aPXMCSgwErDQI5Rz6qjJvHuyS8gVsd1MbhphVWbNJmbxOxuAyA4dhX056HgbogW7aGKgPJgUiXClQvVWdi7eQ7XL=w375-h665-no

Finish up the last spots with some smaller patch panels. Nearly fully welded in at this point. Did not 100% weld, just stitched every few inches, the rest was covered with seam sealer. Didn't want to put all the heat in it to fully weld and cause any major warps. that, and sheet is a pain to weld, though in general this wasn't all that bad.
Project Big Stick Wagon Q34Aq3K4h-Nwiuhr5lq2Kyn0LmcOBtheTjsy6euAzy8EzjZ2BdTrUE52yYaHR4caAJ-YELXs1s7pGoLZSFLL6CEtO4JbMO7SPeTQ_-XMvflrkIGfPr4sgvtQwSgQZYMzwHK0oAwF0QVcQ3T536NKUha4gx-LnXuhXP-mqS2cYRWPzjX2nN-q6H2hj1ZR7JhA_pch1iUKg721a6iLKK3XIglZACiO5xk_Y4jg-K9FfNx-RPiB4T8LgvlSL31qo0-oko8GibDldkYX5xzfGXc6g-nIGDjzkFuFCVJ67-Q-2JyodVBwkJbbnBEL4CbDmB_4Ne_GM7_2bGe8QRc0B9MbCWKccRiFkS5gFkwJf2xyhayww26FPrLaXnHK-rXbnXfzbLQnGEqXdIihuy1oO4CQw27gfC5wOFWbztK90pjZXXEimpP4Ak9FLKsije-EWCqfQsFHekXnWfdGiSuCeI67qDVQUbfqg3d8LvKSdU741nNvivLQE1pegojqPo9yBPyfdjMOFAoXuYHWJHspl02hknq6-feGBRwQzVd0zBkyJPOqKkbPy9dRBBh4J4vAhxmfuk0eY-zSATKAPJ9jiwN5BdjRCEA3c_B7IIh8Z9d74F3GpBAW9dmztV3GmaW57jc1XIVBCz7RMJXNX3ihKxPc111EnsPVG4Ism-LkkirUYh485nyCx0ANnvCejhc_8jXDD2kWl6C1oWTfdOBpHiNw_UGT=w1183-h666-no

Little Brown primer over the seam sealer and calling it done!
Project Big Stick Wagon 4FlTEYXWwTUib2nFaTddHVA8_xDUHE13o9CEwLSSMoF5CbKlCEiI_TZZR0sBr9lFGr2Cbluz5bTPGZhHf6HGx5DrX6uWAv0aBQdD1MJaGc_zVvmmb2tfvntKTMkqmcIBw9AWDECqj4hbp-Qe31mf5MTC1ODv8jcRayRMeAooUOAtdlext7Skb7ql6DhJIjEEJSFHaOdGqk-O7IWYt6uab836_1thjclKYDr5UYXmsTctBGMVxIVBD-ml0Qoru5AC372ayLwjm6nTsdz4_49mc0nZ0NPLCxUl1gFpVnXuWyAqx-RBisWsMoq3WleSStWrXAO0TDw3DPgEyn7oJPe3gXlteuLr2Btq_e9Bn3nOh6hZpmDd6vCr_U5eqe9__zHS9XMhPCUs7c62phIqJtMwj0HnVpx_-WSNCPo-vnN1MDMo2euUb96jEF5kLEpJZELPXyCj02dR7zd2JKUJRLELZy7HTKPYDjZ4BVxpyhxYPdrcQbefyAJASclpijvVOdNeHi9MVytgvgpud8KlXaS5j1ZbVIgecPBWQbAhQAOucJ6FYUNhu_eoWjGnx8uGnHeEqmfxKdRvFa8fcQ5PcxCVc77sQ6Txxyr8_WfXX_4xazo6Yih13Ew2W9Ap2AA6tpQcG5zAhibDDou3XhNHvF4OQXDtMYKKkOnhhE20WAoPAM0JxKzmDpruHNX2ls8sBQ_8R1QHRP7Zce3QNqmZm_V_tyS5=w1183-h666-no

tunnel vision. plenty of room for everything now.
Project Big Stick Wagon CIdLF6xAtFY4m3y6oyy4Qdc12ud1aIeWx22w-4gQH8EVjTPcTHbc14DOJlPZxOyaO7nz5hwO9z04AyxOow6c01vgooouo7h2xXMaylNWJLa1g_CLI_gzy3JjAFznzffyX3dv91swg8jZBRDcrns0UNJ_VutmKgWpaRtFBG7jJhkhwXrczuNs_CEMnDJ7oVDKl1kPaw4i7snBWDy8MMY4Kfswmi7In0E2AffFqp_QLgFNBB45IClYcs0scQE0NtMB7HW38vL4i_NzrXUhpNmX1zOFdnrg8ZQx0lM9hbtAu12mRFWgq334HMdzlETBnbiBK6nPTNBnW-3k7wbpKq6ypQzjFAymATkhm8fnAw0hPsXwO7zdZrzBmNw1fHK31j1x8lhSQp9u-ArkMZAHQyH4PSjYbvkuoH5lHYvEjQHW13eb9h_v2nTw_leRAJPKKSo6Tdh-pDp4GKYhKHDQjKP3VR998xKmC4OtDtOD5fR7hmsAPVyrQdMP0ALxPxTM3KmXDzxFPexuQr_i0y-snOJe2RIwFFc6xBpSlVy_sMrzqRphCfPXGtylHkd67mjs9Mclwxq-2OYCmt8504SSlgOihaPHtbb717K7fmvENbt10_NksMQu_zDA8rxfitBQqFsLP91SJjMVagRY7j5NhONLb76bknZdR0BX0VFxmNKgm1DcRCLOEZghme9hJaMUoY2ms2RURahFwas-scta--mWmmUi=w1183-h666-no

Wednesday i need to figure out where to mount the clutch MC, not sure how the best way to go about that just yet, but i'l figure it out. Pedals go in for the final time, then reinstall the drivetrain. for the final time as well.

after that, should be pretty well all downhill from that point. Just installing parts pretty well with fuel system, wiring, cooling system and rear gears. Main fab left will be seats, and exhaust.

Goal now is Indy leg of the power tour this year, June 12th have a 100% operational car.
Back to top Go down
rcktpwrd

rcktpwrd

Posts : 101
Join date : 2019-03-06
Location : Raleigh, NC

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeSun Apr 07, 2019 9:47 pm

nice work!

We are doing the full Power Tour this year in the wife's 454SS.
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeMon Apr 08, 2019 7:37 am

rcktpwrd wrote:
nice work!

We are doing the full Power Tour this year in the wife's 454SS.

Thanks!


we are hoping to long haul the tour next year. If all works out, have a group of about 10 or so going to do it with us in a wide array of cars.
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeWed Apr 10, 2019 9:22 pm

Wagon Wednesday!

Tonight was small things that make a big difference.

New clutch Master had a cheesy pushrod. Old one had a nice, adjustable rod end. Not sure if it was stock or aftermarket. swapped out pushrods was first on the list today. I want that adjustability.
Project Big Stick Wagon 2mZJOlwszaSYNZXnMncRmBRFGkVaesZIfgM6xB91LkDEsCt6Vt9IwLF-KZG123jDnC7WwIkNlsDUwWj919cgotZfNYy-Zw-3wW0J0TKrZbez6Cm7qF5j15CsX9N7P4kHZxrgrk7BfDxAoXLZRkyOs-FnZzPb4jDCNrpQw8YXHyR6QHAQJLQKJAiFe8XyrRMa0iNAtR6bS5V_3K-pVlnmmtOPYdGirh03x87lbXg-ftYBMaWsl3xg-vudrDhI2ijoT9xegtx3_2i5YYzxqnpcGLgPjxdDAEOOa8fiyOE5xeNycW-arikvSEIBJxiNnSA9x599xEqOf-60AFMzXzKEG77hW0QpSmvdbUnvTx4QYPlUxQ_XM8qZqn62msAs3C-LZLIqKlS4Z3ecfsbl_fbN_AaWCKlg502i2pHBXz-Hu4UPhUs9nK5qIOyiM2nvomXzkasMFJjzj7PRa9VyyuJ9QklCbm_HD_bXpZ3l8IQP97wzZw6rL7La8c8FE-4iqOy_t6oXSAprTBZz5n3suKReLKZfeDE3BWqXvjCSPGy7FUzrb5QJMzzh5Mpvi5SGbgEq134Z9aRrnfoYh67XTV0VI4Uqvy1CLbq_gCqmjhlpP2dW6nSgaTP9KbIrK4EDcj9D2Ij3_dug0ab-OnfoHz4v7pd3CPWsuRL3yFnHkoTDqXQ82L3SoQAgTYI18o2wHglmVIJaVBo0F1YWdI-uSheY-KRg=w375-h665-no


Then, had to mount it. Bit of test fitting and a Fender brace was right in the way. angle grinder said it was not in the way for long
Project Big Stick Wagon V_qX-AlBXQDzFc8fJR5GvXyWR2uUfpyS-CNnvG4kZLaMrROjCcaGEo8nIZrcMEyuLEJgWg6vNmGIKtRqHv58jpLf1SBsD8w290tjtdgn1GjtlBed5JJCLxX-D1N1Tql33Wz0BRKlSDkiAUlj89hbsZkjsgG48-jZ0vYkcs3CPb805_EWxis4YvAaimaTLjed1jPCfJC6XOr0equktjQCRHOcRmlLlzRRKgdg7Iwbzd-ULN8aoczXFiQKiYEtHuM0U7R5UNFv617f9fKnP-dudi13SNZuiFn_aLB1tM1K8H9TmYCD43QQ7oPt-x_TyqC97hE5XkjSp7GY68Hfa9idad5VrA8_n6ZmSCBvn7ubRAwNFLPEOK52R3t4K1NS1ei4fLzqCx8rH5bRhvAwkqzzNpk4maFarX1flqWeP1jEwefPmHKQ2fNilkVpkhAY8RoeSgqJLtnmAmybb33WbBsmV7CcpyEmDqxY8Zz3UHeqdrpxLa5jJEtDpFMqf2F4NLd4B-cg3ND9H00MqC8YzmXv0cL4pghTfkvpZfl5VMjwLUy2WophKWxF3U4RbTHCgPg51N4wWG68kZRJpD53-TxBOZOw5uRS4-jMUYEyL0T52Dl-lbmvF4sEXo2DNuYx1ciwOKzLZi5abSMb4F9ueNhoDQBSqPmINLr4ujdkc4Gmgc0UEyv0FFfSH268LQWeu6yLYaXk1JVf7zoIyGe-UFpsgmDL=w375-h665-no

Had to get a bit creative to drill the mounting holes as access is rather limited.
Project Big Stick Wagon PN322PNxJ1O4bpoN4mjZyaEE3puoxWwqDhPacy5-h4AgpSVBPIxORRYtX59I3hkYbfelYZjAz32LLcMaVST1yRxcenTJCcECru-2MST3FUCd6ZJ9cuFbTNrGKNzqrGWCwYMLd2xczwVQDVIyym7HN33WVQa0NmGAbD0bHjTDFEK9ZzZ-Fi0pPgu1ozsTYITwOow_HTbN4moxpRtv3W5IBvjfNn7xLN7SYrEgVbKpa7OkgqDpZIkEaToVGe2QcQK6ASFs91eQdqsfSexNEar-dVsTV2x6dZsOHg5bLSj5sj3hBzuCqVFWEZZsnkFdHW5WoW34WvnsBTki9isugPS7D1y_OLxwZb03uPVKiUvN58bIvGsBwxieb2Jm5pkTMJN_W2RNFN851ceWHx1VpKC1mqr2TzlleITSZyZ7awmLVdO5uw13RY0DERLZuXLUbVhyZIrEZh6fK6N15blLbdxgYGEfrttIX5cI6GBRJ9qKIVcm17NyI55W5Xc6lxngZ53lc6U8uXRUHoOKJ9_97PX2bHMmril70OrRxdIyaROYwDDnMkG4_5jQkkjmCAPm0bl41vvlY_a3nkkmv8XEajrXqmxBjyGjbSRES4mxNe2jug0enZ8ARmyYbk9315mlWbqeRTj6UWD8K4F8T_I12JWg_vTcCawx1SEoA2-m8aZ38DDH8687QJG29nivaAxVGxMoI7PeekgqvBWuGoVOpQz7PB98=w1183-h666-no

Then mounted it up, luckily using an existing hole. feel pretty good about it, but we will have to wait and see if it works as well as i hope
Project Big Stick Wagon YKm0RgxAgD3OA0lDAyWV_kg1geUB57r9vwkottHwQd3ihJDX4wURkV8fY5n3VKF-ezLm198gH-juDoVMGGzJFb9UvQKsgKbAuI9-jT5cvDcbGXYOjX321HGZ3RwXsAchRmDo-DU-cAIs55REEJryr2aKvpC60s77kZpI4sh3QX80Eq5jIudb07Lwro-RojJaUAqGqmJFLLSYeJSP6ywFHwpLDzO33LesnWQd40mvJs1AU9CyF_TPIgTZd1y7o9StSgtJcW-CMW7mdZSFKL7FldPZPWHooa58LYXITrO1JM4QoRefqIW7XLvA3yu2eLEjzIhjIzlkkBzUVgz-SorEVI1CG-l6JMDi63rSrM4q-yW8MfeIazD9NnjyvN1y1Lm8jxJdeKZQlVW55fF48wOLHyttYvvxUkn3DkKvjzi75WZ8JtpuCSUgk_uRBkT9zZkX-U5QzTnr4Ky6sHJxKYtnOIfFTi3dm2APRwrg5-oJP_Ta69Yod49gMv2S6wjXyeif8HhOujHpEwecQfDeEsfcF7gpwAWL2_LEZsQlBKPFvUYh-TPBWUWzTjQjaoo9_E0PBSY9vokFLdKGSFJ1WaIpyfCfD51AJ7IeB2KkD8veBxpaU7A1oV_7AArSOqjlRjWimRMy6iWL12ZR11FkkdKICbnsILRTfRT2-Gfbzi_tZNw3HeOx2250MAfFHK1glthNggaFXq9Eg3QGpldvxnK1U0WE=w375-h665-no

Project Big Stick Wagon XEt0prcH5KMYzCW5mSJfX-9wS4lFaZFfVsjNMvKhBLfoEQBBVTW9SGre-g2_A6TEOLNXERQDyPUxoJ5hbR8oaYQ0AN8MKI_eoeivM7hQPB59C5A0HivTTyfTSXFvvK5Pj7sZvfjcahjrkX5upA9g5n97nOHd-O8vs9iwUz0Jyy5-qzQrlHHqzB5ccRuc3vhwxwrWfK4K5lOONflkaLsEIQUnEZ65weKt2iofh2RvXpBghjP8hjkqx8-GsVoVH9fX0K2oif3x8jwrC4hx3KvzHRMd3RN-D_LV4KJMJ5gsvqbGMwLlL4T00X1qgW6wgYW6qBJZw8vXXKP3noGnvp3i4gZTs-I__D7hwhH9haDr37IEu0Z9gFq_hv4i3UbEIy5sJgre6mffRY56cEzNkLxjtJVBgQMKJt-BXURiop43nKZFkDCwxGj0YpqoSo14SLgYeoZk3Co4UYGfCau6ub6d7fnfRjWralqSXgkrN4FofW5_16VZexi_DvvGamTYw15dVUsb_gBlYJ3mdL2NW-I7YSrj5ygoQnzJLOwJqmwXfmjLBkobWPX9xZZAdyFy1EZxtUP6k53DPWD4eUjHXpqyYEpQmqKteInKACOB-IRk4SOHkme2q9FiPnPCxjfJ1gsSJsWQOHZw8thZyjRgenvrpD5Y646V3JQXZJQaBoYfawuozrw_s5cZVMiTCkuAEp1ZTGnilSfrIDuVAs31pwOZXlWL=w1183-h666-no

Interior is coming back together.
Project Big Stick Wagon 2pg7QlCX-7VDkKRRHx64_vuz5LcM483Eb7sYeqRX6WgQiFRkv9pY_ACzljzOHsehrNgzA6_7QHVor0V1YsXn4bIxtI-6aFt_csdhWdDwY0DPIKGIb2611ueFPuwMdKK25FrZbKY-FIKXF2UCvPPfhDSvgD-daLzbfbXdOgKx9EWb-n9QAlt8gGtWZ8WvmU52i1RLtEGF-VZQl8L7yLybefoLoSRvSErtRh2Yhwi4MYW7oByJWpDtVNrLF835KtzxgKFyb0AiUsSzcbvMflkg8VThGnV87rV6XpdIYbpPVGSixBab50j76Rv8P-NRgC2qHdVAC_CL7CFz1jyfTG4Vp3-KKK4hthMA2NCBVkmSMR4t2Tsb5k5nGObpHay_QpKRTSiBYut3i0nBtauQwoMDRLGVv9cd3XdnWUjcqORwk8NiKdkzxeCVx27Bhj_2NbZYfagXQ6TM9Naa_OxHoOJBL1u9NRtLd9VyvaxsO5_B11j39YsMSUoJCmUQdUTPEFaOaHxAWtax3cMGP3DnPJhyzdeZkQ_Hkw42HYi6bSM95I0FOiPvAjW8omtbm6qX9OUdEXHd3xMmcm4RzdJEYXqkdx3iY8MCzQdoBKMh57WYYobJvUtzVXP38foS15nn27GC4k8LZHFa5R2XzEVcj454NP-HLP36YJS_LPB4dLq0NRvg5K45c5-pijYva-dI8gMHQRvj33ZOLMVvTftVqfM-jLdO=w375-h665-no


and then....cut a big hole in my fresh floors. Hopefully i measured right the first time.
Project Big Stick Wagon J-7M3cp6smCv5UUxBeE8vsAGpjx8aFMisWvsH1nGBbCOgiBe3wVsjzV5EljzrX9VlquFJR3q7Fwut4UsEBSgUUTlh3L3lvp22PH2X5WrSaELp4kpKKY-m9vtOkGbZOdDMi51hxZQ_finz-jyNxgROCaNwqkNQC1vxXO9j_mqFKuyvUwntGFixXaA4xoK2Y4qDBG7SqSc40ZOdvAkpeE9GU9jDDKk-MdOV5lxfLTY4oD5vwQKAGQ2tDil9NCotrUF3HzwntxgVkaV6J8h3gpMos7A1olEMQ5Qx4RBjtRGxZ8qkhtJojed3Qa3ZlrPYgzzy0Ti6SzHEuqAcE1xe4vqsvxJ4nyjwddrV2k139K3A4ag9HW0XQAxLrLx4zZGQfwRysRmZS2dgKLovvlCN4zNjP7CAYfewhWZlDWCQxdQ8TaQ4twARbYg-6ApLs8NsJbNX7mq7XYSjY33yuIqT7fmdd3EcsPFdLVM-GnTgtE6_WwI1cbUYn9hbLeZLgyobvP8zqcBEH6QDkt7ZBvSXueapHveQUd5Q7yEsuFEZIOKXtRwmSy0VPNEYrclMg70P506-U2LBUosJXJI0nhgSPINYLEri_SSbcUiKM0UmlP-xh-tWeNtW_CycPSpOKtPJxE25_b0BHKY05s109zAX8R2jRcKMLoC52ZJ9QwPBilHmm0X0dx4ocMqA4NSx-zLDu5N5TY2Yvk1BPwQw5smwhkXk9vJ=w375-h665-no


Now, another hiatus in work. Be back at it in 2 week. At that point, drivetrain will be going in for teh final time. Then the simpler stuff can be handled. Cooling, fueling, wiring. Exhaust is the biggest project left i think.

Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu Apr 25, 2019 6:54 am

The eagle has landed! Drivetrain back in for last time. Hoping to hear it run in about 2 weeks!

Project Big Stick Wagon 1tSnkazO0b1ZuDVcpT80QxShBiphQixt4SSmyZF7KH9wt5dV4iVTrO527MiEQwCDserlBC6r1GzFdIeHoNSdwlm0tzcxA4ByOZeGgZCCy5JBsOFQQbf1ADB8Vo2L4uxO3PlTLR5Kvi6795yamNnheaPadTo3nzTc8ficX2MzDGyyQZvF3C9xx2aXc1tGOR9gGel8YDcISda0toNvDkg5iFJNYX3SvPuwkPsDP43GFpxUEwOKCNy171q3-OC9YEEPgmVkvvkb-S-6wpWmmYiV9g85qqv0kMYAN1uHZEmNodBkmrLs9hCJb7mb2poJNoPEMeINPx9j3yqRmS08G3MdJ2m_6xWnvbWqHrAsr1cXWWHI7KjOOsUZrr8d4kG74RceSmtA5-xIo0Kxh9_AxLYLlSL9AVG0G8Rzybr2bnHMRhZLcu9qjYdM5Gl05SH-753llZyBTrv5UQJYBA8wm5b9qku9YzdmZUrWz3OvR5x6LlncnTPapFuE9VBYCid7T34665s4ATxbDwr_UJlEgalI855If1aBXgeQiBVfGI1I-JuB0AxDs5HbvT3lNi4_INzaKulSPrcu1V4T9dKyyI_ekG6eQ1fJBXtoQY78xcWvkj6OHK84zEWAgC4q1pHJKCaPTl5PWpqRn8uBfAFqAla-R4sxmNks23vOxyeEv6lgw96jY3a4MUEtaYkzlQSUoWQ76Xc_GIizyV54LALlNUwUxcr2=w528-h937-no

had to cut a larger hole for the shifter. My original hole was in the correct location, but needed to be able to install/remove the whole shifter assembly from the top side. it will be covered with a bolt on plate before i am finished.
Project Big Stick Wagon Gv5xX0QiG72_pMTiFVm3DraxnI6wo869hqezBbaiv_0t1r2MlTS-BdySZJirA9NBr-YGdnVLg9-xUSNopi47OcKOcis3KSdcMKll3ttbkoi6ByFebLJohHoY7BOktlvwG1q1y715IwB2qABldPsFgxR_niCzpt3OdjPndYXzCAlku5m1qSaW0zklfZhB9N8bvlAZTD3_SPonO-NbITtAWhyb5fXSEDIniePcT-vstwjLZSJERzgIfc2cXpgchtMyMgIoDC46rdeSReEQmMHuUz2pVCVi7HZkdMBSmbfUDHlVm1lVcjpaC5gePeuV2T2hhwxWy8J-9T4iePJWogEqkENM2rss8E9inMReXFgUfHuEtPBGE2suLVNmGx0he4lwgWnrMNwG2obvAsIntoAOIDheuULhbadTtdQo35-mc1qGq5KdLDIqGMjgeoq-GkWKntZxXNh2mWSTeV2Vsj4DkrVsdXmm3WsVBBbmHf4QDczQEN0-7JXyASdhYtx-qfmqOu0nvwMZtSYzQgfo0LnoiBJddpnaUtsvxvWEJLE6YhNcaxQCfhRo99yF3B9jbx_teYQ3FfNESfUZf7Lr0QRHwl-oTsMrSgH5o3ZLx4YLmql-dK_SYjy3ygZNVjo2B-u7QQZrPrghMJ8Yn9XdoQ3b7LxF9Y3OG026Tfm9qZaLsCE0vvfKPfPaXHah0SBQw5wKLDrBfbS9Mq4FYlA_AHYyHFVJ=w528-h937-no
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeSat May 04, 2019 10:05 pm

Today did not go as planned. was hoping for the first fire up in the car today.

Started off by changing Injectors. Replacing the stock 26lb injectors with some 36lb flex fuel injectors. Pulled old injectors out, they looked terrible. go to install new injectors and they do not seem to fit. as i pulled them out the small plastic caps on the end dislodged themselves and fell into the intake ports.

This lead to some creative retrieval methods. Put some mesh over a shopvac and was able to retrieve a few, the rest were retrieved by some grease on the tip of a pick.

So instead of assembly, wasted 2 hours or so swapping injectors i can't use, then tearing the intake off to get injectors parts from the intake tract. I have early truck injectors, these are late truck injectors. Everything i read says they "Should" fit, but i call BS as they will not go in. so back to ordering new injectors again. Going with some 8.1 injectors this go around similar flow rate (34lb at 58psi) to the flex fuel and are 100% the same as the stock injectors size and connector wise.

New injector on the left, stock on the right
Project Big Stick Wagon LZHsns9350PCUqT8N0F3RggvOKcDXaz5RSZQ9mWapDAz0LFH-NxkF3_Poa5P-ZfMCFrWdzh4rx1xN6_gnD1o9XlxIJOcxVHKqwijhLieWweUxtCx0f2V-UweDbkXlXY5qJL7c-orWXMfnRVdXRRt-PLKG00XXZhfW0hUv96i2_Zwg2Dtbx26vovj4-YVhdOtKFXyFgoPURnmeC843f8luH5cxVJedofq-RUgi2hbSQirxXIhzJ4gyoCBjeBzOg6J-PXfOxRJuQslqCEwhIcFkdjxPcEafNjIR5xk4l5fMnyLBvJr6-wkZskqBRGre0N4Vpx01oqWhrv-HhZa5ZCFoMZyP8ea1k1xdkPvbBMHPwNt3pKZytlNXLhj0mB_MSMDszVXnb3wWsLOldMoQu3kZZ_tyNv6OmCo3MM2ZD6ogvZe_eCD9faFpY65zaQ-I0uW-lBFLhVvU1dNGIxk5idkth03NUITRxI1dViRauEv38Dawd6kZKtwKny0g9MfKs-Fh1UxTcY2qJOG4fr4PXBBLVDmpckTCQAKxC8sdzFx4IJX_wZ7_NfwXfjN62Q-a-RmveeNJWoeDHpaWYrO_BXWQnlkYAbvMagALOYu5ab25FdbIapXybBx8Q3tBvSZEsNQLeXI9zDLm9t6YmJhW2a0msQuDH3yifkpmt_b3KL5EZgerfeG5XEOiMxO-Gr48TnbE17GDR8oBQJUI6dgQLmGAbDf=w375-h665-no

Moving backward as it is less assembled now that it was earlier in the week. but i did manage to finish the cooling system, start routing the wire harness, install headers, mount my TAC module, and knock quite a few things off of my to do list.
Project Big Stick Wagon Ed9LmcXIgV5UaRq2BH70XNZ6U4ZgAX8c97HtJBC5Rnfj7GAeR1O2ILGZ7XTAA-emjoeMdBC0WSCAt8pkqnhruq2SnVEkrNz7cvcBe3ZAGmNrOiXqMM_iZvbbm0xL0hnc_COQmz68eV9-OzYW-Q4gCqQmtK_Lchj6T97TfR1Ufdtxr3lQC5HZ3tKOTNAqQGP6x1Ss8LOfT-zsWVBY-a5hGoGiQU_vNndjUF6T2TKoTzuIfk_hpvtioloAcu4_sROZTLdWmlrNPQJdT9QlwzK9vLn2eKh70KMi07H9mbzz93rdO1KBifUToNI4nBDLl1eznQ82-FQ95ln6UaNzhFJmC_HL5ntIuk0L7J7yOcYyaMgzKzGcMFRp8JgO9uCDQVDW_evJ9jv9Ud9-CXGqbl2Dy4ivSAvbg4uWPibS9RamNexf0gl1lhGtEVx30SDjMLwigChysugCsqozzrjC-IiuFlDf4PjU2gD-yKXs9ZdOk5lIY62BkDlUqmorxgsCGAIvYiutT4MDOntrZ1204b2EaOuxGiP0QwLpyznSgAT_nRgVTXFU1WkEy6nhMzK7djxiJ5t1izDC_RhyzXKeqbuo2I46PrlyTGyYiG5vjjIbkclVgPO4XSqiBVCvWVA_Ht-GHU-GpILfxGrm_Ib4k0lfUhBcmz2CK45wnMr8pkfojhR9B5ZFTbFe1sCMyneV3PcQfeNqB5GbUrA0QBaFLxlKsvcA=w375-h665-no

Tucked the PCM behind the battery in the fender. Nice little hiding spot for it, out of harms way
Project Big Stick Wagon LinCNeRmPgCTQ46SzYybLBxWxgVR8YXFxbDH0mWhlAC-ajTRjfhi_LTvPJJn-1GtVnZqDBCI9mv6DUIv2MTjx-U4x6YQbOlG7fzE-l1ZDQW1fVGSMpQJciWpXA925igTTRvyaMXJJe8FBvKSv0YoLTH8-bZCBI3ltlaB_ojfHKbKsJBOizlbTccUTE8ftL4LiflaKRDdhj8-HVo6fNhG49iae-pK7sduOVCdp4xi7P4CJJS879SDLo25TG1e5HkutzVPi5hIxUzeD0RJJvCWuVYNmHTeTSJ4hdTLpYPQuAQU9Eyrcqmo-MIarnx7IdYpq05YxswtVix2sjLZOODtclcU-61G2VKx1h4oCmL5iJY1tRM80TvExOgGk1-kRBaAatfyvA64CVm7wbsPemO1Bgp62Q_-k-OukdGxqjGkBOyWjnr0AmiCUfDPSvYhYtkQG1O7SgGEnJ8aDnbKpypSR-GueB0k5apyRNyRFHVjRpvTN-W5YmKdRIbT4MZelZWc7ttzh-2TTur-NiPYTjwN4WAkcXtmSG79SKx8GrtPYC5TpbqzqGoI8Od2qN57r-Gf2zs1EbuuJK4jWQ7BPvwr70JKxd4twvrE2tslI2_HunRCQRkS8kfvaod8nKjdaL12s0MxOxo-Yw4qV7_mQcBHATNy2OirCHBARuulWBe1bjvIcUMPfz44spI7058FwbgpxlhrGjFpFWhADB-MvgCaam33=w375-h665-no

also got the interior in a more usable shape. Shifter hole covered, stock bench back in and clears the shifter well. If my parts show us tuesday, then i should be in good shape to fire it up.
Project Big Stick Wagon Hw8BhLP_PVxSgIocwt03Hvr7L27cnn55bYZYlP0JfedNHaNGaAJ7LHSR_7W4h_f2aqK3-nq00DAmtp2H-Xzgwb8ykXiMGn38b4JJtjB-cSyTEMqpvuo_jHWoio9mR7u7lgUWrRdLykQifIegnFJZvOn4lOS65RUVFaStqB0TMUE_sMrLsaCCaUlhDHcC3IqsOh9NZ2VQlAdQOckunUGnMHMBVAtKurS_XZ1L97r2Fxv18rZpjGWYfK_MvLRploirUV9ebEFJ2zGf4Dm9hTNioMpDCW7ZvVZr2Wew3jDr-cZKHL4QyDXpZh3aCaRLnQpykJA-LgQTeCh0Hjm_8BZg-jdf3g66DJt4wGj--fdvjB5_a1An0CWG34o10joStllitXMQWgMzAWRSMeFSK5gJ5KRPGkCGwar9AXENaNymaZWmcntufTKbTYtMRPJujEQS3V3EbUtneGeb1-ap8EF4VeQrqzrHvETJC0R-9b2SMjtyQXPDoZ96xFF_glyXTCyzvFlH5JL3tqcK15SVVmEbH3nwSs-KMgKKyFQvMNMlhZ4Y0kUUWVRxja2_vjCQsM-ek1uXTjjv5HVjCO43PI1qdhopsjEdttl2y9eJ1RkY0HptKvLJNv7lE8CVc-oVGqJAZyraFy7LepjpAaky5H9M_VNkXZRzYCFb8pT98vrpEK4u4kdwQjxhTWSRpVKGSYLTQ0k0hC_UDpXMm__AjRd7Lv-6=w375-h665-no
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu May 09, 2019 10:06 am

Made some noise with it last night
[url=blob:https://youtube.googleapis.com/fd4b7f84-8f1c-40c5-aed0-bd79911e5ab9]blob:https://youtube.googleapis.com/fd4b7f84-8f1c-40c5-aed0-bd79911e5ab9[/url]
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu May 09, 2019 10:06 am

Back to top Go down
silverfox103
Moderator
silverfox103

Posts : 2973
Join date : 2008-11-05
Age : 70
Location : Littleton, NH & St. Simons, GA

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu May 09, 2019 11:17 am

Underpowered wrote:
https://photos.google.com/photo/AF1QipPR9vB-y5thKot9GJZyPOFXF751a4Ive-xtuFkV

Tried the link....error message.

Tom
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeThu May 09, 2019 11:19 am

Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeSat May 11, 2019 8:40 pm

It Moves! and is quite undriveable with the current gears as i feared. Bleeding the clutch was easy, but took quite a lot of pedal pumping to get a pedal even once the system was air free.

Still on the to do list is gears, exhaust, and legality issues (lights, turn signals, tires, horn, ETC) as well as gauges (OBD2 and a tablet for now)

Gears first to to make moving around the farm as i work on it easier.
Project Big Stick Wagon Gm9Ap0yHep7whgpoE-HqSWvjnchWdiCNupfc-u4fx1tmCIRjW3KrC44VPKDIeECu0504DxaUI-MHtE9x5FSO8u7Iszj6XW34UyXoJOOro53qNizAbSb3kbqkNvc_0iHswEgWypqAvWUNzSg3-Ek933_WMiDIdqS5YxqCywDy6tJzUlEqifpf-_2lKNx0FS_1AzjSffsgNwi6pwNrnIp3TFyNq5pcj3mE0_BWyKY5DMUk3yPcUIyXLivseKzwLttCOq_-sAS5Xrp4F-rVv3hvd3xIGuD2sTldRpAITSwjPm8gI7GtLuDhSAtuUB3JoAqwJDNA1Pyls1w4KEQmQbLYr1YrOvPMLyKjOdc4WLOcFV77-PbTuGHoJpWu16_D_Hq1x8Il4JGeoZXVDQqD8TglquU2YVEf1mmWHVMWc5yOL-WK3Pokj0xRlGbVtEkUZUomwkNStl7Ie-1iXkO7tl_LCI_znqRdYQRUoHMXoGRcHcSRWk4AKR_D1dFSV_oWT7QQc6jh57Q4kKdjIYWFIs00SuuuY_52RgUh2CxXVib3u_RfaErne6o4qDue4QV2_mHxmsVVHv4pcDFPTMNu7zUftaJNaELIkdCB8aBtiGrVJx3FqXhXpYMtbtmxYMiYy_PNWEfjv43mze0FvuyJMItlKDpahjvA0qGxRwI_q2TAy57KBT90dhKrnM9_p7AKl343InTBZFn_9oXk3RMFTH6QTmeC=w1183-h666-no

Painted my Intake tube to mate the block. eventually valve covers, radiator support, and a few other pieces will match as well.
Project Big Stick Wagon BGulEVPIeQrYsv0faaYsk3saaYey4t5RYLow0my8kBmHEUov9cmKObdXFd2ZLZrdO7WjkVg54IpjVy87NFUIIFZgTxI5zyflmqBbdey5CNBOvqlYetfcaGeEU3PSAyZrUr9qL32QkrWB1neIJ8KDXom45K3kgqnBlHcdyiLAK42JPmknIRR8W2z3l8W22oZxAjVaYKZ-ga1WvmE7ksb3AStzp5hC-E0146Z71Mz8ud9f7aSqR_LVDHDrXSu-YM9Tj-hcXIkir4btWZ6AdEvteC8lc3bplL4ypULCmX-NUMxvKFu1R75SkKJwFpfGBCdlaMp-E4dVjAEayDHfTPA5QcWHkFjh7uqCMb9PhXhxB7GmcupedJVsuDLDaI6dvoniCIXVEGCfjuv6TDGK4l73gGBiBpNxTS1G4PezsotO8uuN9Uls1lKR2hW0H030mV1haqUJi1EfzQF_1jAXHIimUFk0ihvfB3Y1EvekaMd9FsIgeBsYN9uwAEe99LdMFdpbiCI_0JCNuGaRiq-BYZuhEsfump04925cYj8SWO8sL1K3Q661UGmTOZufa5t7qJ9r-G4OJZcNfgtGjYEQyi3WbPUXE3kOBGyrqhKEc0-l0JWBg9vl3ICCGjFfkLuH6YbH9xyhaNggUG59aipyCGPL24WveSX0PAzrqutcLlcG-9wYr5qhVvwHXk0gq01otfZ6Qh8c_gVZRi1558vKdz8RczCs=w375-h665-no

Not quite up to the task of driving just yet. 2.73 rear gears make it a bear to move. that, and it is virtually untuned at this point.
Project Big Stick Wagon 2bpJHCZTO0yXt_L_eV44b1OTc1RBap3XZP6wXZyT0aUt4K3S3YCtX_h9rDzziETRIf7zxbsmpIkBWOuXVNtig_2-lnioAgrBALbM-6jLyjZa_bJwupOgbxtmZ7kH14wy7ciO-PMOJ0HiAAEI_Mp8noTc0lT6P4ugvhmNsjN1MYj4iHCz37OQXOoST4aye9RAtaDsVXCKPipOVCLDG3kXy5q2ZJQFszcLDrBY0RKQYb1IWggDb9PiP9TQl_VMEpu1quWSmXi8wZkER-x545wa5riNNTAMKwCvUJlF_2CZfbXK-UMgyjzZlYnj9ptnOLk2X_ZuohjBlVMZ9kFEoZmUwCZcQDsOGvhcx6sX0eTZDIwdyrp8toqLYAPa3LkTevke5pONgSSVYRWB4k_8YlaNiADI-MxlZzW3xT8PihKNGE0FtdoOSMFRMzoE-qV-SWzu54-a29Bi36hvCxgBSwr8bFTxu-SOr6unVvOJrk14hEb0Cjgx0wjfYDjmVV8O6uttFbWaw8wYWN9sEXgy0qLqS_ZJg6b9XpSEMqg4LJmruNlY4eG1ysHhst3h5FENtwydw44Qfetc2PYcMYWXy3A7baXyl396u4tAbgZ2QL_f3542gpkdgXKwCenZkgco-8PysLBI_WXLnkLAFQbozAMIJnp_6WulJlHYmhNeDvsJ0GFpKDLOv5_YOBAItGIJBri5j9N0rQBtaAdAN4QczrNBRxE8=w1183-h666-no

Nice to see the light of day for the first time in a while.
Project Big Stick Wagon OMoBkp2IuADs72x2mP6VE1074L5xeEHmWASe0CigSI0Sq0iWSjv-FI-CTIf4X6e4U1w5KLxtHUP5QiWBpp2iwKPMYh4IPVcPTO-FfodwiRsFJC6NtL-6qHImLkra-iKdKQdLDpU12Ye-tVEqL0sST1OirEFl3fSdwVcY3FUb42k3D4cG8iPHg4t6uGGkiC2Ttmc1-0NAXmYusjuPirn9ZcX_giARKD5DG88vegKY0YBtBxsazOePopjqUdhktgwE-6epyoAzHIhpOBfYRxQm-j4FCHVzQuuCKcdnNUr89u9_2GzA_0alJDk9C-BkBXOh19sIPvVNjZ17dqHKdMdzPHn6vdM6DNmiAfjXrO8gPCYeHaGnyUvf6EgDAF9r430qUA9yBGXf47dB1q_elMbNLucSYhOtZPiiW5kAqdY5I4khQcJa1GmikYpfYuMb5Kv-Inke5XcWD5Sz6bIn0_Qk4Jnmv5qZtkA4VklexVrZtc-L_zI2xsyygxxJ5WnPsYTR9QJV4gYd6v1AIwBlkuXxVAxOliZAEugxH63U1p2i3mYwTnTZwYiKT5w-tteU7E09OtiipAPXSq3d5hEbIz5Ab6-nT3-mzObQCjjlpcSBiKqGNG3-6uQ8mYRZiD9PPdDv3TZrUG0k3kurnnV31VRc5Yl42mohm5qAAOaPQb6OTNesMP-MQ8aGod-_dyaxS1XgxAquFhphB0sx330WZsEUw0Q-=w1183-h666-no
Back to top Go down
rcktpwrd

rcktpwrd

Posts : 101
Join date : 2019-03-06
Location : Raleigh, NC

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeSun May 12, 2019 2:04 pm

cool
Cool
Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeSat May 25, 2019 9:31 pm

Did some stuff and things today.

Picked up a used 8.5 rear end from a 96 Buick Roadmaster last week. Regeared it with my 4.10's i already had. First time doing gears...here hoping it holds up!.



Installed the new rear end today. Easy swap, took an hour. No pic, as it looks just like the old one.

Then i decided to work on my Exhaust. First steps was i knew my trans crossmember was in the way, It needed some clearance holes.
Project Big Stick Wagon Lf7hmibT1IwAyuEe5G92aWY34ntnN8kfYez7mllWceAWuxSX_wI1wtYVYCodpfKg1uh7B06AtihNWP5wLFBVV_Fla8YzXHMiXh1fcXLtWfC0wFhok8pDSqiAOQmEDll75-36ZP5Gk56DRRT-xwuWZcnXWiol4cNlBvBzC4BOp83a6cXeFOUNHjVctfZYFcNQpzAMAb7S3C3KOOPhQFMa4mzautH4IolWX7Ra6VBIV8wtbbksjh02-PScxASRiZQGy8SBkJxLNEvDNyshzsJ6N0Q9RTGs5zM6gqFh3oLe_k5WMdxVqkgv7CvhwO-qRetnZXXtmS9xyvvHtzICxc1q8S5zLtJ8JlGLOJHOwfBNRavUZ7sH1BBvb8RjLCCX0QV6zm1UFHsCCyP6cZwRUq2suZBHIslripa-EOYZuPGD_dBAeEqb_xGRBos3-hilH_kxna_7crtzUaWLsiOdtwFVjffrtU9jFR_9MZjmeL0CRXZdjED6TCn2QskignG9fxljjXWm7uBxnDV_GTGEFXNFEfBR9T1Pv4TZYr7tyVqe05PdFohTE-YjFEySYYsP4w--lbSlEEhKuekR1olCYgjTGSkVS1W0fzXBa_g5vusWAhYjwaSGCi5fW9dAvm-hyZigjEUeknY_G-4QOH4UKd6N8FhcjkR3jxGGNPIT0oTIkXOJRbYgSa6ZlGiSEbb7VxIEFIPsClbrfLzZZRDAL9QQUkwD=w375-h665-no



Then did a bit of piping. Options were limited.
Project Big Stick Wagon OiUnmq6IlzOane_rqVnHX4mnVa10vWWg2CZH3iNvuJNvGNzqnRlNjOOr1k23j7qYc3sHHdwFNZDRuQqST0TzESBi-P4o8wqxwxHdpNBYoqgYB0ySihIzSOXT4Ybq_aOWylcmtyq9AsUjlv9tq0L3LW_eJLrkQiTMppL3K3b5cEK5A_ssXNxdV9evnBohvgDgG2x5nS9aJEq48-i4Dp1f68UiRSSum71UItZclTkWkwBeAO8Eb9kHpxub_hkwnPn_dG7l-7n4IV8cr2KT-91seQB447OdyAlb9g1GZWOoG688DlaxJstUSh8gCWc6nRjwvwARrIti5nYeoQA8EYnzCNVF0bmFWBS3mltKpQX78Zw3e03pSbBypn4upp6XcLbzSrr4lsvZSlFiiZ2bwCzZYeJkXD51J0EPKNEMnGx0S6bvgyv0TW3go9vYauTXJ2PPGFzHeU8sXPK2NH2LV975wCMRtWBVycHgLruebtfGDCmt3Jvvr95AsLyGQwJJ2EJLjOcSvkZOKniPSO4-KIjAVmcWEJBMG75s7QvnnJ_wKqPYbUg5mPbSiHkKW7t4IcSB_1TtmibiEFfXASaETm1FnkJ33tzFayTul8qFPTC42lBzTrrdNm8QuZazhGzU3paZcRxEudkws6JO3TRKtNENlTAffHKXM-dK_zTyO0lcP0Cp-V8j9seXQrVg2qLSoiywnSvWhqOsX9Z0KNiEAWbfQH09=w1183-h666-no


Project Big Stick Wagon CaGcwIG2WmZRnwV4bc0gj7A-HMQ3BIZnj1_gVHjbRBu_DLCwOGFplsdzHZs0Ujqf2o_qk1cVTkO3SDIiebs6kW954IEfjBBDu9PRMd_d7pBl4r2fEYDhw3lvv_cloro525SlduCGKkSpz83DGnAN3HU_-XehCT_6s48Gvf7IVn7R-1TFLrOkJrVdIySjKQgap4uBgLncmaw7xfYo39DNNw_ZlRsAVeZfX0BAapj_lmKukYPABdez4H5Oj-cHKRY5015hw-40vy1-qLl0FrOF1Nm0w9bci1gAcSiDJSgd5osbsYKZDQ4oAzQWcIYzTwbTLQ1v-nD4r8MT3_WJw9GJXifdJQ1dtu-_BNJLqlhJ8SORsAVyG-9jslKHxIbmzd8q1mJxn-ZlvXhzm5m7DHEJs9PgFxT_Qha1udjLGejoJArFVEW0zpgF__8BerlL4llZ7VRjQXBIZ0YI2t0k-eVHn5t1AwJqJhqkWABJzSp812UPZ73BoLAysDSxxbH9_3QbpRJu4pHODiwMhFphYJITMDiFYoKasH_LL7llhx8qU3YpB7TS915e7VNIm95QcEK5CzfSLbJu-FyAMf_4y1bZ09YK7Ptu6p19LOBdHAIiI2WXhP8P3Zpn0bUt6eL4-4TRMs31CWzxrolb5mGOa40BAWns6lBC2L28--it4QkfbI8wOonVnTQJpMr2raoetw03278FI23EFGw5WEU6PUye5aCw=w1183-h666-no



Also had some new meats dropped off for it as well. No budget for wheels right now but tires were needed due to dry rot on the old ones.

Project Big Stick Wagon FMP4a1Je2MJDH3jeL47JFL0cwG0HOJd7W-_jb_MaEsITsUdq19pYqfpArIRL7mWnPsOvnZUi_tzNMEg84vJTKQuE55xCe_WHaIjud1l16mQd31DX-5ZOpcaCr4eBA1BhZrGiBF_oR4kU-4yizZNN6NedGw36nRsmaZKzdbdody3Cx9XQ_PNy4flTTmV1kxn90y3dkHjStk3VTucfP5h-UxMjiPTsCM1IiqcpffFlmNSCuUQN-KIXUc0y96YLdRBn9qUEil33gl7WuEsg-LTaIXUpCb_NZk9mbV-0JOgKjknF2sy7WmZzqj7erM8K4O7TPrX5OAxiqhEfPdIyMNZI7TgdXziU6aUxheH5CTZWbpD_Htce8DRFne7yK8n3LAFUOsRjsQM8GTHccwtYU6FgTsi4EpWaWusivf9NCiNOB-f5eSVNgNznWq_IZBodKW9Q6pX9UmAxl_pa_N0Dju8ANdu2LIBNVjii1IMXRMm2UtFWG7tT6P61qsrE-PMB3xLhs0Do05kNaNYxL9ocQyPNWBbnm2UMCn7gDsHftPfKiUnT-hy6yFXo00HCGEK8PEZC8bxbM56YR42r5GxmuE1YHjM96a_MVtKgzzAwH6gPrTzyqMRUPW6PxbwlB2GJq3XDbdzmUBYgkSRjC2ftLEN-IVMTItcHCHf7r5KBkTkug6Ln-wulM3eb9usV9SSmKLZi_v74jIr1uaCvC9v9LCpxexM5=w1183-h666-no

Back to top Go down
Underpowered



Posts : 51
Join date : 2019-02-11

Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitimeSun Jun 02, 2019 9:24 pm

Put a few miles on the wagon this week. did a bit of driving around to get a baseline tune on the car. It has a few issues, but nothing that keeps me from driving it (At least short distances)

First issue is the major one. The longer i drive it, the more the brakes drag. Even though i did not change anything on the brake setup, i think i need to adjust my pushrod at the Master cylinder. After driving the car home, about 15 miles into the drive the brakes were dragging to the point the car was undriveable. Stopped, ate dinner, went and got some tools (wife was following me home) popped the bleeded to release the pressure. drove the rest of the way home without issue.

2nd issue is electrical. I have 12v to the factory fuse block in the car, but any draw on it drops Voltage. Brake lights drop voltage enough to cause the radio to cut out. Rear window does the same thing and will only drop in short burst. quick test show any sort of draw on the fuse block drops the voltage down to only about 7 volts.

But it is good enough to get it tagged this week! gonna tackle the brakes tomorrow i hope by adjusting the pushrod between the booster and MC, or if it is non adjustable i will shim the master some.

Then later this week try and track down the electrical issue. possibly just some corrosion on the bulkhead connected through the firewall. If not, i'll just have to run a new, larger wire to the fuse block.


its first foray out into the real world in almost a year
Project Big Stick Wagon 2haQbmEHFLl4J6n-qFOyaP92uqY5s2EfjVaoffrA4yhE_fuK3_SH0LHuWl19dLEQno5Mreg4ScUNy8WFcsyGLIj-Tds3il32L9y9kIXcvedjLeFblxPGGiwrwCvoOrHUJ8y2x1dJ3KMvA0owGiP4C88OaZEtGjQ3oi82t3tDT-YHPz7b8k_wQiT0hohZU3S2w2kLtv9ZCXSj7uI2aFQQiX_dMIZv6ieqfkdOl22q_39CYrM90_hrWBdMrszpk2-9VIfO83jhdreF5uSi1XGwiyxwQnN_xCN7vGpmxt0ZxAfTqXcJlQrKqcuViMcW2N3myN7ZzkoddL0_5MtFnyxUFqnLALz30RF0UaDCVPIMBTnVHWRKjxGsD4WiHj53-PDe-hXv3aSelNlXVCUcmJyt_Wc3H1p9bnwdlMwfmj9WvGxOoSgiu9TIRYjyvMgQaf8FDMM-umsq6zj6Gs5p0AXud0Nab5ioXsA1jM7B4Vj8eOfgLLF_P0vRagAkeHvbMy5sJo4EMXg-FkNigdPdDgLn2gE1_D2_vfH_ycAHVtDLaIXMC0Hp6w-cGTxF9Fzj5veAHpuzvhdH9Jkk4d_LH0mlYBSNxiZihU5eYP_H-9mAcyNYJ1X8c_gqsPdRJ7hWVeqX5LyZG_bTZt3FeDg83D_a2SGoqf1NmBxtUEJef8g-yTAAG9rewqLTe5hZAiq59F_f2DCVw7-bhbAzu0x1f-1AR1KQ=w1183-h666-no

and earning that roadkill sticker working on the brakes in a sub shop parking lot
Project Big Stick Wagon IukUVuOumSy0PWu1mDCW9j5J0rDnHF3mubNLWCNIXszT0bfxX2s9jZqwnfpkuFCchhnTCcMizl2O_uEB1p9d9vxh8h8GX7jbB2Qj9cVkk4IXqCQ_JISHWlHeRP35rlgO404u1Z705k-w2JOEAKkiua9SnVHn3kXivRQV6HREFfqJfd3_cV-X1Xew--a5oeAnERO_qVo1BEakeqIkPrWMAsJj_z0oP-6dOyvZvnJ_4w36HMrf-lOGTmgKKSSPx3lXbLm0ruMb8xKcMIPhPqWECZ68zbF9kBn0nBto_a-7cKuJ4NipaLdqhqlbTE-sXvSCgfYJv0zqC8Bs2qXjnHJKh-uRPLXtbgacHZpKYbt3qGmXFn_TnTJw3M40LuAcpaxHJ628aiDHlI4lyZekfdiVARDkXbTQPKVQ6B3-XNpKaioExNfat8FA2uY0Fx4yzR82qWBv3gxgLdT2vhXthUsB39R8b191haC3l0GZaaVGeL-3VePgNBQJgzahVPF2l03Xzc58cbo20ZFDMEXHOrMCEBYz3OzxjWP2a_xOgfVNlHBTKFMU7Fzaxa1dyYLrvFVsLW5uQKEBA4rWAFxts-oBcgqVd_kci6X5p-azR-5bZZB-9FoKajMSEZN3vGmItui9sDkvI1MPVj3k3Mx9A9MiVUqFG8tvoCOc4j_7ltlYR2LzvplG-HsGtnbTR8AnAVstkt9kMH8HLMK0mrVGp3l-Ezjz=w1183-h666-no
Back to top Go down
Sponsored content




Project Big Stick Wagon Empty
PostSubject: Re: Project Big Stick Wagon   Project Big Stick Wagon Icon_minitime

Back to top Go down

Project Big Stick Wagon
Back to top
Page 1 of 1
 Similar topics
-
» [Project] CP_AddOn - Configure scripts
» Project Aubade
» Project D - Free Forumotion Theme
» Definition of Abbreviations
» Medieval town project

Permissions in this forum:You cannot reply to topics in this forum
GM Longroof Forum :: Longroof Tech :: Member Projects-
Jump to:
