 Question about battery cables

Go down
+4
Andebe
jayoldschool
nstg8r
TheRoadmasterKing
8 posters
AuthorMessage
TheRoadmasterKing




Posts : 437
Join date : 2015-10-07
Location : Ohio

Question about battery cables Empty
PostSubject: Question about battery cables   Question about battery cables Icon_minitimeSun Oct 11, 2015 2:53 pm

When I get my RMW, I am going to put my old subwoofers in the back as well as swapping out the headunit with a new JVC Arsenal.
I am putting the subwoofer amplifier in the locking side panel storage compartment and I am going to run 30 foot RCA cables from the headunit, through the vehicle trim, and up into the compartment to the amp. I have, however, run into a slight issue. Where do I get 30 feet of 2-4 gauge battery cable? I can't find anyone that sells that length. I want to buy 30 feet so I have enough battery cable for the amp once I'm done snaking it around the vehicle trim through the engine compartment. Cool
Back to top Go down
nstg8r




Posts : 295
Join date : 2012-07-26
Age : 45
Location : Arvada, CO

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSun Oct 11, 2015 2:58 pm

You're going to have to buy it by the foot from a place like this: http://www.sonicelectronix.com/cat_i188_4-gauge-power-ground-wire.html and then terminate it yourself.
Back to top Go down
TheRoadmasterKing




Posts : 437
Join date : 2015-10-07
Location : Ohio

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSun Oct 11, 2015 3:07 pm

nstg8r wrote:
You're going to have to buy it by the foot from a place like this [edited out link because apparently I can't post external links for 7 days since I'm a new member] and then terminate it yourself.

That kinda sucks but you gotta do what you gotta do I guess... Laughing

Also, is there a way to wire up a switch to the battery cables to turn off the amp on or off along with the ignition so it doesn't drain the battery? I don't want to have to manually unplug the battery from my amp every day if I don't have to.
Back to top Go down
nstg8r




Posts : 295
Join date : 2012-07-26
Age : 45
Location : Arvada, CO

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSun Oct 11, 2015 3:10 pm

Your amp should have a signal wire that only turns the amp on when the stereo is turned on.  A lot of RCA cables will have this built in, otherwise just run a small wire from the back of the stereo to the location of the amp.  Question about battery cables Amplifier-installation-single-amplifier The blue wire on this image
Back to top Go down
TheRoadmasterKing




Posts : 437
Join date : 2015-10-07
Location : Ohio

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSun Oct 11, 2015 3:14 pm

We installed the subwoofers in my Dad's truck a few years back and we had to wire the amp into the fuse for the fuel injectors so it would only get power with the car running. I honestly don't remember what stupid way we wired it up and made it work but I remember connecting it to the battery made the amp stay powered all the time.
Back to top Go down
jayoldschool

jayoldschool


Posts : 2728
Join date : 2009-06-14

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSun Oct 11, 2015 6:03 pm

Any amp I have ever seen has a remote on input lead. Just like all head units have an antenna out and/or remote on output. Also, 2-4 gauge is probably overkill for the amps. You can do the math, and not waste money on thick cable you don't need.
Back to top Go down
Andebe

Andebe


Posts : 3323
Join date : 2013-02-20
Age : 55
Location : Centerville, IN

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeMon Oct 12, 2015 10:15 am

To each his own,but I agree with Jay,2-4 gauge is overkill. Save some coin for other upgrades. Cool
Back to top Go down
Guest
Guest




Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeMon Oct 12, 2015 11:09 am

How much power are you running here? I had a run of 1/0 AWG in my wagon, but I also had 2500W RMS going to that amp, and another 750 RMS for mids and highs....

Soooo with that said -

What year is your wagon? You can run your amp wire to the remote terminal on the fuse box just as well. There's plenty of easy access holes (That's what she said) to run the wire, and it'll fit easily under the trim.

What gauge wire does your amp request? Use that. What amp are you using and how much power are you planning to run here?
Back to top Go down
TheRoadmasterKing




Posts : 437
Join date : 2015-10-07
Location : Ohio

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeMon Oct 12, 2015 6:59 pm

Stingroo wrote:
How much power are you running here? I had a run of 1/0 AWG in my wagon, but I also had 2500W RMS going to that amp, and another 750 RMS for mids and highs....

Soooo with that said -

What year is your wagon? You can run your amp wire to the remote terminal on the fuse box just as well. There's plenty of easy access holes (That's what she said) to run the wire, and it'll fit easily under the trim.

What gauge wire does your amp request? Use that. What amp are you using and how much power are you planning to run here?
I don't have the wagon yet, but these are future plans for when I do get the wagon in a year or so. Smile I plan to buy a 1994 Estate. The amp is 820 watts but I plan to upgrade to 1000/1500.

jayoldschool wrote:
Any amp I have ever seen has a remote on input lead.  Just like all head units have an antenna out and/or remote on output.  Also, 2-4 gauge is probably overkill for the amps.  You can do the math, and not waste money on thick cable you don't need.
I don't think the remote wire will work, since my amp is a Pioneer amplifier and I'm buying a JVC head unit... and yes, my Pioneer amp DOES have a remote wire plug, and the headunit I am purchasing has subwoofer amp hookups.
Back to top Go down
Guest
Guest




Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeMon Oct 12, 2015 7:03 pm

"Remote" means "remote power." As in - that power wire turns on remote (i.e. not-located-at-the-head-unit) accessories, like your amp. Not the head unit's remote control.

Is that 820w "MAX" or 820w RMS? These are very different power levels.
Back to top Go down
TheRoadmasterKing




Posts : 437
Join date : 2015-10-07
Location : Ohio

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeMon Oct 12, 2015 7:14 pm

Stingroo wrote:
"Remote" means "remote power." As in - that power wire turns on remote (i.e. not-located-at-the-head-unit) accessories, like your amp. Not the head unit's remote control.

Is that 820w "MAX" or 820w RMS? These are very different power levels.
I don't really know. The amp just says 820W on it.

The amp is a Pioneer GM-5500T.
Back to top Go down
jayoldschool

jayoldschool


Posts : 2728
Join date : 2009-06-14

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeMon Oct 12, 2015 7:24 pm

lol, that is not a big amp. You could install a Walmart amp wiring kit and it would be overkill. It's 125Wx2.

The remote on lead from the JVC will turn on the Pioneer just fine.
Back to top Go down
TheRoadmasterKing




Posts : 437
Join date : 2015-10-07
Location : Ohio

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeMon Oct 12, 2015 7:26 pm

jayoldschool wrote:
lol, that is not a big amp.  You could install a Walmart amp wiring kit and it would be overkill. It's 125Wx2.

The remote on lead from the JVC will turn on the Pioneer just fine.
Thanks! And I plan to go up to 1000 watts anyways. Smile
Back to top Go down
Guest
Guest




Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeMon Oct 12, 2015 7:44 pm

Yeah, still though, a "1000 watt amp" vs "1000W RMS" are very different power levels.

It also depends on what kind of subs you have, what impedance you wire them at, etc. etc. I had a 2500W amp, but it was 2500W at 1 ohm. I had two dual voice coil 4 ohm subs that I wired down to 1 ohm to use all 2500W.

Had I kept them at 4ohm, they'd only draw 750W.

A very large difference.


...and even then, it wasn't REALLY putting out 2500W. That's just what the package claimed. It was really feeding like ~1400 or so if I remember right. No amp is 100% efficient, and nothing but the best name brands will ever come close to the "rated" power. If it's not CEA-2006 compliant, they're full of ****.
Back to top Go down
TheRoadmasterKing




Posts : 437
Join date : 2015-10-07
Location : Ohio

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeMon Oct 12, 2015 8:18 pm

Stingroo wrote:
Yeah, still though, a "1000 watt amp" vs "1000W RMS" are very different power levels.

It also depends on what kind of subs you have, what impedance you wire them at, etc. etc. I had a 2500W amp, but it was 2500W at 1 ohm. I had two dual voice coil 4 ohm subs that I wired down to 1 ohm to use all 2500W.

Had I kept them at 4ohm, they'd only draw 750W.

A very large difference.


...and even then, it wasn't REALLY putting out 2500W. That's just what the package claimed. It was really feeding like ~1400 or so if I remember right. No amp is 100% efficient, and nothing but the best name brands will ever come close to the "rated" power. If it's not CEA-2006 compliant, they're full of ****.

Ohm... RMS... Impedance... Welp, my brain is fried now.

The subs I have are two 10" Rockford Fosgate Kick woofers I bought at a garage sale earlier for $10. They were still sealed in their original box and according to a sticker on each woofer they were manufactured back in April 2001. afro
Back to top Go down
Bert Slater

Bert Slater


Posts : 254
Join date : 2015-03-23
Location : Melrose Florida

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeMon Oct 12, 2015 8:56 pm

LOL the prev owner of Betty did the same thing. He was able to tuck thr amps behind the lockbox by the tail lights. Still plenty of room on either side, front or rear though. He ran a cable big enough to jump start a John Deere. I still have the amps, unused a i000 watt 2 channel and 500 watt 4 channel. I'm thinking of using the cable for an arc welder, or starting my own neon lit mobile billboard company. What I would REALLY like to do is power up a 16" Klipsch corner horn. Then when someone pulls up behind me trying to knock my fillings loose, a flick of a switch and the hatch comes up and blam!!!!
Back to top Go down
TheRoadmasterKing




Posts : 437
Join date : 2015-10-07
Location : Ohio

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeMon Oct 12, 2015 9:21 pm

Bert Slater wrote:
LOL the prev owner of Betty did the same thing. He was able to tuck thr amps  behind the lockbox by the tail lights. Still plenty of room on either side, front or rear though. He ran a cable big enough to jump start a John Deere. I still have the amps, unused a i000 watt 2 channel and 500 watt 4 channel. I'm thinking of using the cable for an arc welder, or starting my own neon lit mobile billboard company. What I would REALLY like to do is power up a 16" Klipsch corner horn. Then when someone pulls up behind me trying to knock my fillings loose, a flick of a switch and the hatch comes up and blam!!!!

My other idea is when I cut the hole in the side panel to run the wires there I'll screw in a wallplate-style RCA coupler and run the headunit wires to the coupler then use a 2 foot or whatever set of RCAs to connect the amplifier to the coupler to make the whole thing removable/plug and play.

Also, since I'll likely have to use screws to fasten the amp to the side panel, is there any precautions to take? I don't want to screw down into anything important or use too long of screws then have screw tips protruding out of my wood paneling :p
Back to top Go down
TheRoadmasterKing




Posts : 437
Join date : 2015-10-07
Location : Ohio

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSat Nov 07, 2015 8:00 pm

Here's a crude schematic of my plan. Will I have to upgrade the alternator or not?
Question about battery cables Schema10

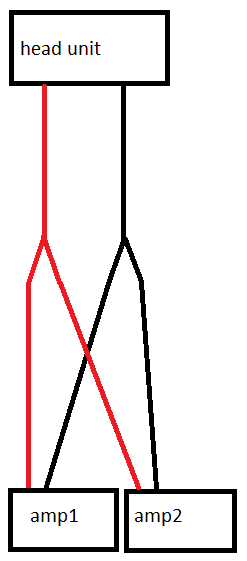

I'm going to get two RCA splitters, one for each channel, then from those run 3-foot RCA cables to each amp.
Question about battery cables Schema11
Back to top Go down
phantom 309

phantom 309


Posts : 5848
Join date : 2008-12-28
Age : 114

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSun Nov 08, 2015 6:26 am

you need to buy a car first,..
Back to top Go down
Andebe

Andebe


Posts : 3323
Join date : 2013-02-20
Age : 55
Location : Centerville, IN

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSun Nov 08, 2015 1:23 pm

phantom 309 wrote:
you need to buy a car first,..
Dream crusher!!! Shocked
Back to top Go down
TheRoadmasterKing




Posts : 437
Join date : 2015-10-07
Location : Ohio

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSun Nov 08, 2015 2:31 pm

Andebe wrote:
phantom 309 wrote:
you need to buy a car first,..
Dream crusher!!! Shocked
Lol
Back to top Go down
benn

benn


Posts : 557
Join date : 2011-12-22
Location : Ontario, Canada

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSun Nov 08, 2015 3:16 pm

Here's what you do (once you get your car) Don't over complicate things here yet. work with what you have and upgrade as you like. you already have subs and an amp right? go to walmart, buy yourself a decent head unit and a wire kit. wire kit is probably something like 50 bucks, an okay head unit $150 or less. you don't need 30 feet of rca cables. I bought a set of 20 footers and had too much. dont even bother thinking about upgrading your alternator yet. wire it up and have fun. that simple.

My first ride was an estate too and I also had old car audio stuff kicking around (and still do lol) my subs were really old 2x JL 10" subs in a box that I got for free. because of the age and specs (I forget what their ratings were) I could only run a very small amp 300-450W I think is what I had. didn't really give a **** because the bass still bumped even with my cheap little setup. before I hooked it all up I had big plans to upgrade but once it was all said and done, I really didnt feel the need too. and trust me, when you finally get your wagon their will be lots of other stuff to spend your money on.
Back to top Go down
TheRoadmasterKing




Posts : 437
Join date : 2015-10-07
Location : Ohio

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSun Nov 08, 2015 3:59 pm

benn wrote:
Here's what you do (once you get your car) Don't over complicate things here yet. work with what you have and upgrade as you like. you already have subs and an amp right? go to walmart, buy yourself a decent head unit and a wire kit. wire kit is probably something like 50 bucks, an okay head unit $150 or less. you don't need 30 feet of rca cables. I bought a set of 20 footers and had too much. dont even bother thinking about upgrading your alternator yet. wire it up and have fun. that simple.

My first ride was an estate too and I also had old car audio stuff kicking around (and still do lol) my subs were really old 2x JL 10" subs in a box that I got for free. because of the age and specs (I forget what their ratings were) I could only run a very small amp 300-450W I think is what I had. didn't really give a **** because the bass still bumped even with my cheap little setup. before I hooked it all up I had big plans to upgrade but once it was all said and done, I really didnt feel the need too. and trust me, when you finally get your wagon their will be lots of other stuff to spend your money on.

OK. Thanks for clearing up some things for me. I might not upgrade my alternator because dimming the lights in the cab could be funny. bounce bounce
Back to top Go down
benn

benn


Posts : 557
Join date : 2011-12-22
Location : Ontario, Canada

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSun Nov 08, 2015 6:32 pm

With the audio stuff you have, you won't need to worry about dimming any lights, but what's the inverter for?
Back to top Go down
phantom 309

phantom 309


Posts : 5848
Join date : 2008-12-28
Age : 114

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSun Nov 08, 2015 6:36 pm

benn wrote:
With the audio stuff you have, you won't need to worry about dimming any lights, but what's the inverter for?

Karaoke,..
Back to top Go down
TheRoadmasterKing




Posts : 437
Join date : 2015-10-07
Location : Ohio

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeSun Nov 08, 2015 8:00 pm

phantom 309 wrote:
benn wrote:
With the audio stuff you have, you won't need to worry about dimming any lights, but what's the inverter for?

Karaoke,..
and a coffee pot, mini fridge... basically going to make the wagon into a sweet camper
Back to top Go down
Andebe

Andebe


Posts : 3323
Join date : 2013-02-20
Age : 55
Location : Centerville, IN

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeMon Nov 09, 2015 10:53 am

TheRoadmasterKing wrote:
phantom 309 wrote:
benn wrote:
With the audio stuff you have, you won't need to worry about dimming any lights, but what's the inverter for?

Karaoke,..
and a coffee pot, mini fridge... basically going to make the wagon into a sweet camper
How about a hearse,call it a rolling dead...I mean bedroom. Cool
Back to top Go down
GSBULLDOG

GSBULLDOG


Posts : 313
Join date : 2010-12-24
Location : Memphis Tn

Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitimeMon Nov 09, 2015 12:28 pm

Andebe wrote:
TheRoadmasterKing wrote:
phantom 309 wrote:
benn wrote:
With the audio stuff you have, you won't need to worry about dimming any lights, but what's the inverter for?

Karaoke,..
and a coffee pot, mini fridge... basically going to make the wagon into a sweet camper
How about a hearse,call it a rolling dead...I mean bedroom. Cool
Lol  lol!
Back to top Go down
Sponsored content





Question about battery cables Empty
PostSubject: Re: Question about battery cables   Question about battery cables Icon_minitime

Back to top Go down

Question about battery cables
Back to top
Page 1 of 1
 Similar topics
-
» Need LT1 battery cables
» Innovative Wiring Battery Cables
» Battery Replacement---question!
» Roadmaster passenger power recline is stuck (bad drive cables?)
» Battery dead - AGAIN >_<!#$@!#%@

Permissions in this forum:You cannot reply to topics in this forum
GM Longroof Forum :: Longroof Tech :: Audio/Video-
Jump to:
